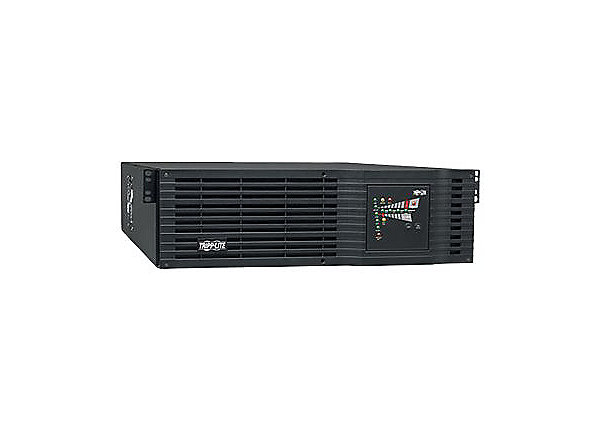

Tripp Lite UPS Smart Online 3000VA 2400W Rackmount 208V / 240V DB9 Preinsta

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Tripp Lite
Brand : Tripp Lite
Product Line : Tripp Lite
Model : UPS Smart Online 3000VA 2400W Rackmount 208V / 240V DB9 Preinstalled WEBCARDLX 3URM
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : USB, Ethernet, RS-232
Remote Management Protocol : HTTP, SNMP
Expansion Slots
Expansion Slots : 1 (total) / 0 (free) x expansion slot
Interface Provided
Interfaces : 1 x management (RS-232) – 9 pin D-Sub (DB-9), 1 x management (Ethernet) – RJ-45, 1 x management (USB) – 4 pin USB Type B
Cable Details
Cables Included : Serial cable – external, USB cable – external, Power cable – integrated – 3 m
Software
Type : TrippLite PowerAlert
Power Device
Form Factor : Rack-mountable
UPS Technology : On-line
Voltage Provided : AC 110/120 volt
Voltage Provided Margin : ± 2%
Frequency Provided : 50/60 hertz
UPS Output Waveform : Sinewave
Power Provided : 2400 watt
Power Capacity (VA) : 3000 volt ampere per kilogram
Voltage Required : AC 110/120 volt
Input Voltage Range : AC 65 – 150 V
Input Connector Type : Power NEMA L5-30
Input Connector Qty : 1
Output Connector Qty : 9
Surge Suppression : Yes
Surge Energy Rating : 510 joules
Efficiency : 94%
Power Device Features : Internal bypass, Hot-swappable batteries, Audible alarm, Cold-start function, Emergency power off, LED indicators
Power Output Connectors Details
Power Output Connectors Details : 4 x power NEMA 5-15/20, 4 x power NEMA 5-15, 1 x power NEMA L5-30
Dataline Surge Protection
Dataline Surge Protection : Network – RJ-45, Phone line – RJ-11 – 1 input line / 1 output line
Battery
Run Time (Up To) : 5 minute (time unit)
Load Type : At full load
Recharge Time : 6 hour(s)
Run Time Details
Run Time (Up To) : 14 min at half load, 5 min at full load
Miscellaneous
Color Category : Black
Rack Mounting Kit : Included
Height (Rack Units) : 3
Rack Size : 26″
Rack Size (metric) : 66 cm
Equipment Protection Value : 250000 US Dollars
Compliant Standards : NOM, RoHS, UL 1778, FCC Part 15 A, CSA
Dimensions & Weight
Width : 45.1 centimetre
Depth : 66 centimetre
Height : 13.3 centimetre
Weight : 33.5 keg
Dimensions & Weight (Shipping)
Shipping Width : 58.4 centimetre
Shipping Depth : 80 centimetre
Shipping Height : 28.6 centimetre
Shipping Weight : 51 keg
Service & Support
Type : 2-year warranty
Service & Support Details
Service & Support : Limited warranty – 2 years
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Humidity Range Operating : 0 – 95% (non-condensing)
Sound Emission : 45 decibel
