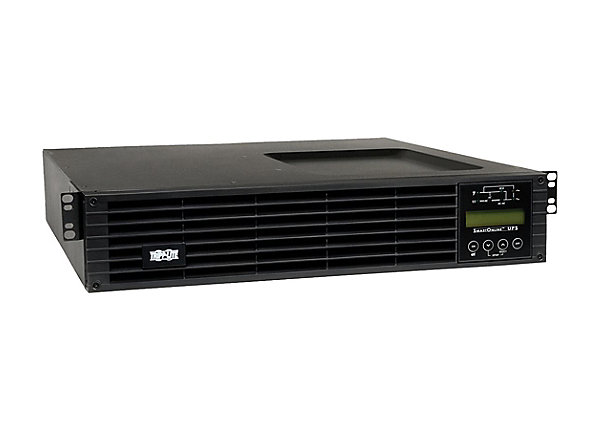

Tripp Lite UPS Smart Online 2200VA 1800W Rackmount 120V LCD USB DB9 2URM –

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Tripp Lite
Brand : Tripp Lite
Product Line : Tripp Lite
Model : UPS Smart Online 2200VA 1800W Rackmount 120V LCD USB DB9 2URM
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : USB, RS-232
Expansion Slots
Expansion Slots : 1 (total) / 1 (free) x expansion slot
Interface Provided
Interfaces : 1 x EPO (emergency power off), 1 x RS-232 – 9 pin D-Sub (DB-9), 1 x USB
Cable Details
Cables Included : USB cable – external, Power cable 3 m, Serial cable – external
Software
Type : TrippLite PowerAlert
Power Device
Form Factor : External
UPS Technology : On-line
Voltage Provided : AC 100/110/115/120/127 volt
Frequency Provided : 50/60 hertz
UPS Output Waveform : Sinewave
Power Provided : 1800 watt
Power Capacity (VA) : 2200 volt ampere per kilogram
Max Electric Current : 16 ampere
Voltage Required : AC 100/110/115/120/127 volt
Input Connector Type : Power NEMA 5-20
Input Connector Qty : 1
Output Connector Qty : 7
Surge Suppression : Yes
Surge Response Time : 0 nanosecond
Surge Energy Rating : 570 joules
Circuit Protection : Circuit breaker
Efficiency : 94%
Power Device Features : Cooling fan, LED indicators, Cold-start function, Undervoltage protection, LCD display, Voltage monitoring, Energy-Saving Outlets, Noise filtering, Internal bypass, Hot-swappable batteries, Remote Emergency Power Off (REPO), Overvoltage protection, Audible alarm
Power Output Connectors Details
Power Output Connectors Details : 1 x power NEMA L5-20 (UPS and surge), 6 x power NEMA 5-15/20 (UPS and surge)
Dataline Surge Protection
Dataline Surge Protection : Network/phone line – RJ-45/RJ-11 – 1 input line / 1 output line
Battery
Included Qty : 1
Run Time (Up To) : 4 minute (time unit)
Load Type : At full load
Recharge Time : 3 Hours
Run Time Details
Run Time (Up To) : 4 min at full load, 12 min at half load
UPS
Expandable Battery : Expandable
System Requirements
OS Required : Microsoft Windows, Apple MacOS X
Miscellaneous
Color Category : Black
Rack Mounting Kit : Included
Height (Rack Units) : 2
Rack Size : 19″
Rack Size (metric) : 48.3 cm
Equipment Protection Value : 250000 US Dollars
Compliant Standards : UL 1778, CSA, FCC Part 15 A, RoHS
Environmental Standards
ENERGY STAR : Yes
Dimensions & Weight
Width : 44.4 centimetre
Depth : 48.3 centimetre
Height : 8.9 centimetre
Weight : 22 keg
Dimensions & Weight (Shipping)
Shipping Width : 50.8 centimetre
Shipping Depth : 61 centimetre
Shipping Height : 24.1 centimetre
Shipping Weight : 27.9 keg
Service & Support
Type : 2-year warranty
Service & Support Details
Service & Support : Limited warranty – 2 years
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Humidity Range Operating : 0 – 95% (non-condensing)
Sound Emission : 57 dBA
