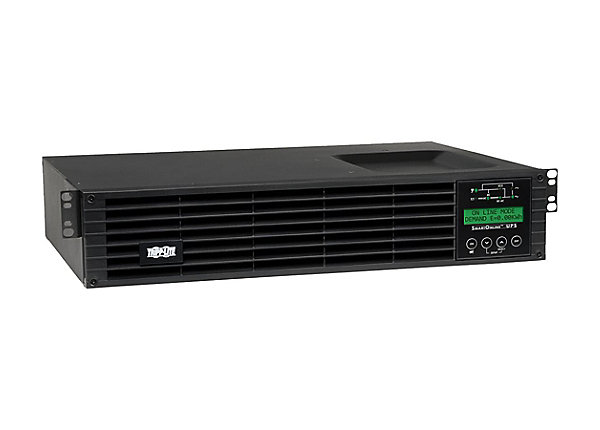

Tripp Lite UPS Smart Online 1000VA 900W Rackmount 120V Extended Run LCD USB

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Tripp Lite
Brand : Tripp Lite
Product Line : Tripp Lite
Model : UPS Smart Online 1000VA 900W Rackmount 120V Extended Run LCD USB DB9 2URM
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : RS-232, USB
Expansion Slots
Expansion Slots : 1 (total) / 1 (free) x expansion slot
Interface Provided
Interfaces : 1 x management (USB) – 4 pin USB Type B, 1 x management (RS-232) – 9 pin D-Sub (DB-9)
Cable Details
Cables Included : Serial cable – external, USB cable – external, Remote control cable – external, Power cable – external – 3 m
Software
Type : TrippLite PowerAlert
Power Device
Form Factor : External
UPS Technology : On-line
Voltage Provided : AC 100/110/115/120/127 volt
Frequency Provided : 50/60 hertz
UPS Output Waveform : Sinewave
Power Provided : 900 watt
Power Capacity (VA) : 1000 volt ampere per kilogram
Voltage Required : AC 100/110/115/120/127 volt
Frequency Required : 50/60 hertz
Input Connector Type : Power NEMA 5-15
Input Connector Qty : 1
Output Connector Qty : 6
Surge Suppression : Yes
Surge Energy Rating : 570 joules
Power Device Features : Cold-start function, Audible alarm, Emergency power off, LED indicators, LCD display, Internal bypass, Cooling fan
Power Output Connectors Details
Power Output Connectors Details : 6 x power NEMA 5-15
Dataline Surge Protection
Dataline Surge Protection : Network/phone line
Battery
Voltage Provided : 24 volt
Run Time (Up To) : 4.8 minute (time unit)
Load Type : At full load
Recharge Time : 3 Hours
Run Time Details
Run Time (Up To) : 4.8 min at half load, 14 min at half load
UPS
Expandable Battery : Expandable
Miscellaneous
Included Accessories : Rack mounting ears
Height (Rack Units) : 2
Equipment Protection Value : 250000 US Dollars
Compliant Standards : CSA, FCC Part 15 B, RoHS, UL 1778
Dimensions & Weight
Width : 44.4 centimetre
Depth : 31.8 centimetre
Height : 8.9 centimetre
Weight : 13.2 keg
Dimensions & Weight (Shipping)
Shipping Width : 50.8 centimetre
Shipping Depth : 61 centimetre
Shipping Height : 24.1 centimetre
Shipping Weight : 18.8 keg
Service & Support
Type : 2-year warranty
Service & Support Details
Service & Support : Limited warranty – 2 years
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Humidity Range Operating : 0 – 95% (non-condensing)
Sound Emission : 45 dBA
