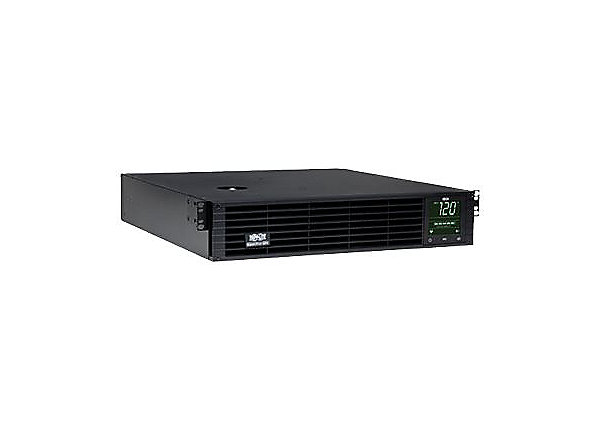

Tripp Lite UPS Smart 3000VA 2250W Rackmount AVR 120V Preinstalled WEBCARDLX

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Tripp Lite
Brand : Tripp Lite
Product Line : Tripp Lite
Model : UPS Smart 3000VA 2250W Rackmount AVR 120V Preinstalled WEBCARDLX Pure Sign Wave USB DB9 2URM
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : Ethernet, USB, RS-232
Remote Management Protocol : SNMP
Expansion Slots
Expansion Slots : 1 (total) / 0 (free) x expansion slot
Interface Provided
Interfaces : 1 x management (USB), 1 x management (RS-232), 1 x management (Ethernet) – RJ-45
Cable Details
Cables Included : USB cable – external, Power cable 3 m, EPO cable – external, Serial cable – external
Software
Type : TrippLite PowerAlert
Power Device
Form Factor : External
UPS Technology : Line interactive
Voltage Provided : AC 120 volt
Voltage Provided Margin : ± 5%
Frequency Provided : 60 hertz
UPS Output Waveform : Sinewave
Power Provided : 2.25 kilograms per millimetere
Power Capacity (VA) : 3000 volt ampere per kilogram
Voltage Required : AC 120 volt
Frequency Required : 60 hertz
Input Connector Type : Power NEMA L5-30
Input Connector Qty : 1
Output Connector Qty : 9
Surge Suppression : Yes
Surge Energy Rating : 570 joules
Circuit Protection : Circuit breaker
Efficiency : 95%+
Power Device Features : Noise filtering, Hot-swappable batteries, Automatic Voltage Regulation (AVR), LCD display, Cold-start function, Audible alarm, Overvoltage protection, Cooling fan, Undervoltage protection
Power Output Connectors Details
Power Output Connectors Details : 8 x power NEMA 5-15/20, 1 x power NEMA L5-30
Battery
Voltage Provided : 48 volt
Run Time (Up To) : 3.5 minute (time unit)
Load Type : At full load
Recharge Time : 4.5 Hours
Run Time Details
Run Time (Up To) : 10 min at half load, 3.5 min at full load
Miscellaneous
Rack Mounting Kit : Included
Height (Rack Units) : 2
Rack Size : 19″
Rack Size (metric) : 48.3 cm
Equipment Protection Value : 250000 US Dollars
Compliant Standards : CSA, UL 1778, FCC Part 15 A, NOM
Dimensions & Weight
Width : 44.4 centimetre
Depth : 49.5 centimetre
Height : 8.9 centimetre
Weight : 28.5 keg
Dimensions & Weight (Shipping)
Shipping Width : 61.5 centimetre
Shipping Depth : 62 centimetre
Shipping Height : 20.1 centimetre
Shipping Weight : 33.5 keg
Service & Support
Type : 3-year warranty with product registration
Service & Support Details
Service & Support : Limited warranty – 3 years
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Humidity Range Operating : 0 – 95% (non-condensing)
