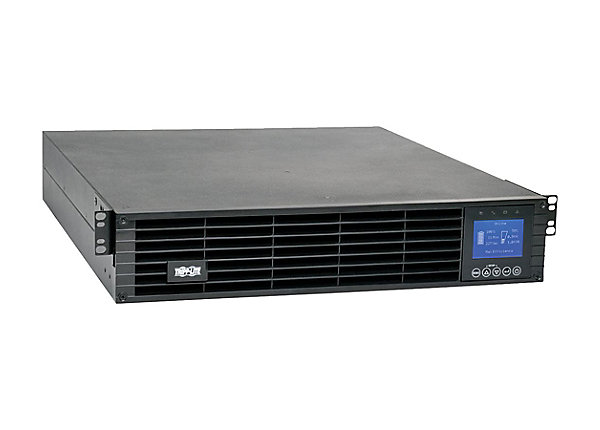

Tripp Lite UPS 2200VA 1980W Smart Online LCD Rackmount 200-240V USB 2U – UP

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Tripp Lite
Brand : Tripp Lite
Product Line : Tripp Lite
Model : UPS 2200VA 1980W Smart Online LCD Rackmount 200-240V USB 2U
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : USB, RS-232
Expansion Slots
Expansion Slots : 1 (total) / 1 (free) x expansion slot
Interface Provided
Interfaces : 1 x EPO (emergency power off), 1 x RS-232 – 9 pin D-Sub (DB-9), 1 x USB
Cable Details
Cables Included : Serial cable – external, USB cable – external, 3 x power cable – external
Software
Type : TrippLite PowerAlert
Power Device
Form Factor : Rack-mountable
UPS Technology : On-line
Voltage Provided : AC 200/208/220/230/240 volt
Voltage Provided Margin : ± 2%
Frequency Provided : 50/60 hertz
UPS Output Waveform : Sinewave
Power Provided : 1980 watt
Power Capacity (VA) : 2200 volt ampere per kilogram
Max Electric Current : 10.94 ampere
Voltage Required : AC 200/208/220/230/240 volt
Frequency Required : 50/60 hertz
Input Wiring : 1-phase
Input Connector Type : Power IEC 60320 C20
Input Connector Qty : 1
Output Connector Type : Power IEC 60320 C19, Power IEC 60320 C13
Output Connector Qty : 9
Surge Suppression : Yes
Surge Energy Rating : 936 joules
Efficiency : 95%
Power Factor (PF) : 0.9
Power Device Features : LED indicators, Remote Emergency Power Off (REPO), LCD display, Cooling fan, Audible alarm, Internal bypass, Noise filtering, Undervoltage protection, Overvoltage protection, Energy-Saving Outlets, Cold-start function, Hot-swappable batteries, Voltage monitoring
Power Output Connectors Details
Power Output Connectors Details : 1 x power IEC 60320 C19 (UPS and surge), 8 x power IEC 60320 C13 (UPS and surge)
Dataline Surge Protection
Dataline Surge Protection : Network/phone line – RJ-45/RJ-11
Battery
Voltage Provided : 48 volt
Run Time (Up To) : 4.3 minute (time unit)
Load Type : At full load
Recharge Time : 3 Hours
Run Time Details
Run Time (Up To) : 4.3 min at full load, 11.7 min at half load
UPS
Expandable Battery : Expandable
Miscellaneous
Color Category : Black
Rack Mounting Kit : Included
Height (Rack Units) : 2
Rack Size : 19″
Rack Size (metric) : 48.3 cm
Equipment Protection Value : 250000 US Dollars
Compliant Standards : FCC Part 15, SASO, IEC 62040-2:2006, UL 1778, IEC 62040-1:2008, EAC, CSA
Features : Built-in cooling fan
Environmental Standards
ENERGY STAR : Yes
Dimensions & Weight
Width : 43.8 centimetre
Depth : 49.6 centimetre
Height : 8.8 centimetre
Weight : 23.1 keg
Dimensions & Weight (Shipping)
Shipping Width : 56.5 centimetre
Shipping Depth : 70 centimetre
Shipping Height : 24 centimetre
Shipping Weight : 27.2 keg
Service & Support
Type : 2-year warranty
Service & Support Details
Service & Support : Limited warranty – 2 years
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Humidity Range Operating : 5 – 95% (non-condensing)
Sound Emission : 50 decibel
