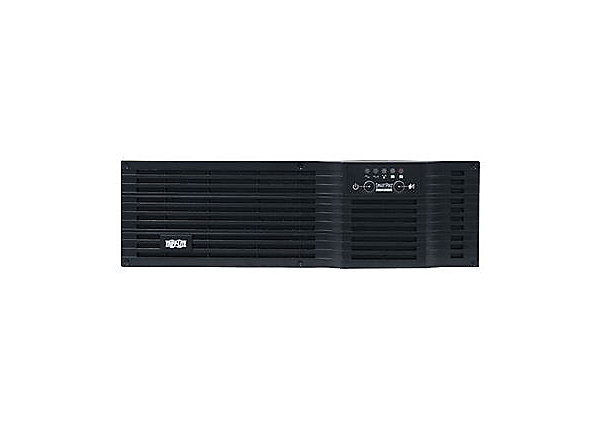

Tripp Lite SmartPro SM2200RMDVTAA

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Tripp Lite
Brand : Tripp Lite
Product Line : Tripp Lite
Model : UPS Smart 2200VA 1920W Rackmount AVR 120V / 230V Pure Sine Wave 3URM TAA GSA
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : USB, RS-232
Expansion Slots
Expansion Slots : 1 (total) / 1 (free) x expansion slot
Interface Provided
Interfaces : 1 x EPO (emergency power off), 1 x management (USB), 1 x management (RS-232) – 9 pin D-Sub (DB-9)
Cable Details
Cables Included : Serial cable – external, USB cable – external, 5 x power cable
Software
Type : TrippLite PowerAlert
Power Device
Form Factor : External
UPS Technology : Line interactive
Voltage Provided : AC 120 volt
Voltage Provided Margin : ± 5%
UPS Output Waveform : Sinewave
Power Provided : 1.92 kilograms per millimetere
Power Capacity (VA) : 2200 volt ampere per kilogram
Voltage Required : AC 120/230 volt
Frequency Required : 50/60 hertz
Input Connector Type : Power IEC 60320 C20
Input Connector Qty : 1
Output Connector Type : Power NEMA 5-15/20, Power NEMA 5-15
Output Connector Qty : 8
Surge Suppression : Yes
Surge Energy Rating : 340 joules
Circuit Protection : Circuit breaker
Power Device Features : Emergency power off, Audible alarm, Automatic Voltage Regulation (AVR), LED indicators
Power Output Connectors Details
Power Output Connectors Details : 4 x power NEMA 5-15/20, 4 x power NEMA 5-15
Battery
Voltage Provided : 48 volt
Run Time (Up To) : 12 minute (time unit)
Load Type : At full load
Run Time Details
Run Time (Up To) : 12 min at full load, 30 min at half load
UPS
Expandable Battery : Expandable
Battery Technology : Lead acid
Miscellaneous
TAA Compliant : Yes
Height (Rack Units) : 3
Compliant Standards : UL 1778, CSA, RoHS, FCC Part 15 A, NOM
Dimensions & Weight
Width : 44.4 centimetre
Depth : 64.1 centimetre
Height : 13.3 centimetre
Weight : 47.3 keg
Dimensions & Weight (Shipping)
Shipping Width : 152 centimetre
Shipping Depth : 129 centimetre
Shipping Height : 29.2 centimetre
Shipping Weight : 72.4 keg
Service & Support
Type : 2-year warranty
Service & Support Details
Service & Support : Limited warranty – 2 years
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Humidity Range Operating : 0 – 95%
