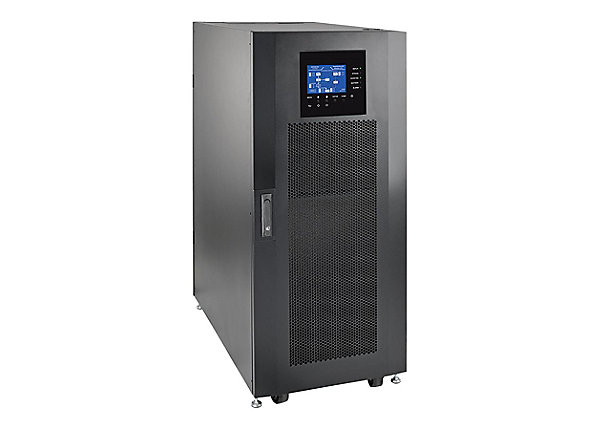

Tripp Lite SmartOnline SV Series 40kVA Small-Frame Modular Scalable 3-Phase

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Tripp Lite
Brand : Tripp Lite
Product Line : Tripp Lite
Model : SmartOnline SV Series 40kVA Small-Frame Modular Scalable 3-Phase On-Line Double-Conversion 208/120V 50/60 Hz UPS System, 2 Battery Modules
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : RS-232
Remote Management Protocol : SSH, Telnet, SNMP
Expansion Slots
Expansion Slots : 1 expansion slot
Interface Provided
Interfaces : 1 x management (Fast Ethernet) – RJ-45, 1 x management (RS-232) – 9 pin D-Sub (DB-9)
Power Device
Form Factor : External
UPS Technology : On-line
Voltage Provided : AC 120/127/208/220 volt
Frequency Provided : 50/60 hertz
UPS Output Waveform : Sinewave
Power Provided : 36 kilograms per millimetere
Power Capacity (VA) : 40000 volt ampere per kilogram
Voltage Required : AC 120/127/208/220 volt
Frequency Required : 40 – 70 hertz
Input Wiring : 3-phase WYE (star)
Input Connector Type : Hardwire
Output Connector Type : Hardwire
Surge Suppression : Yes
Surge Energy Rating : 2496 joules
Circuit Protection : Circuit breaker
Power Factor (PF) : 0.99
Total Harmonic Distortion (THD) : 3 percent
Power Device Features : Overload protection, Overvoltage protection, Cold-start function, Hot-swappable batteries, DSP technology, Undervoltage protection, Hot swappable PSU, Cooling fan, LED indicators, LCD display, IGBT rectifier, Audible alarm
Power Output Connectors Details
Power Output Connectors Details : Hardwire
Battery
Run Time (Up To) : 3.9 minute (time unit)
Run Time Details
Run Time (Up To) : 8 min at half load, 3.9 min at full load
UPS
Expandable Battery : Expandable
Batteries Qty : 2
Power Modules Qty : 2
Miscellaneous
Color Category : Black
Compliant Standards : RoHS, UL 1778 5th edition, CSA, NOM, CSA C22.2 No. 107.3.14, FCC Part 15 A
Dimensions & Weight
Width : 60 centimetre
Depth : 110 centimetre
Height : 147.5 centimetre
Weight : 547.49 keg
Dimensions & Weight (Shipping)
Shipping Width : 75 centimetre
Shipping Depth : 122 centimetre
Shipping Height : 164.6 centimetre
Shipping Weight : 658 keg
Service & Support
Type : 2-year warranty
Service & Support Details
Service & Support : Limited warranty – 2 years
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Humidity Range Operating : 0 – 95% (non-condensing)
Sound Emission : 73 dBA
