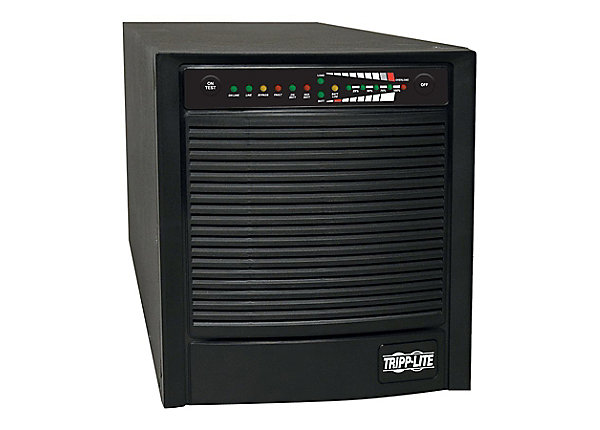

Tripp Lite SmartOnLine SU1500XL

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Tripp Lite
Brand : Tripp Lite
Product Line : Tripp Lite
Model : UPS Smart Online 1500VA 1200W Tower 100V-120V USB DB9 SNMP RT
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : RS-232, USB
Expansion Slots
Expansion Slots : 1 (total) / 1 (free) x expansion slot
Interface Provided
Interfaces : 1 x EPO (emergency power off) – RJ-11, 1 x management (RS-232) – 9 pin D-Sub (DB-9), 1 x management (USB) – 4 pin USB Type B
Cable Details
Cables Included : USB cable – external, Power cable – integrated – 3 m, Serial cable – external
Software
Type : TrippLite PowerAlert
Power Device
Form Factor : External
UPS Technology : On-line
Voltage Provided : AC 100/110/120 volt
Voltage Provided Margin : ± 2%
Frequency Provided : 50/60 hertz
UPS Output Waveform : Sinewave
Power Provided : 1.2 kilograms per millimetere
Power Capacity (VA) : 1500 volt ampere per kilogram
Voltage Required : AC 100/110/120 volt
Input Voltage Range : AC 65 – 138 V
Frequency Required : 50/60 hertz
Input Connector Type : Power NEMA 5-15
Input Connector Qty : 1
Output Connector Type : Power NEMA 5-15
Output Connector Qty : 6
Surge Suppression : Yes
Surge Energy Rating : 570 joules
Circuit Protection : Circuit breaker
Power Device Features : Audible alarm, LED indicators, Emergency power off
Power Output Connectors Details
Power Output Connectors Details : 6 x power NEMA 5-15
Dataline Surge Protection
Dataline Surge Protection : Network/phone line – RJ-45
Battery
Voltage Provided : 48 volt
Run Time (Up To) : 4.5 minute (time unit)
Load Type : At full load
Recharge Time : 6 Hours
Run Time Details
Run Time (Up To) : 4.5 min at full load
UPS
Expandable Battery : Expandable
Battery Technology : Lead acid
Miscellaneous
Color : Attractive black
Color Category : Black
Equipment Protection Value : 250000 US Dollars
Compliant Standards : CSA, FCC Part 68, NOM, RoHS, UL 1778
Dimensions & Weight
Width : 23 centimetre
Depth : 49.5 centimetre
Height : 26 centimetre
Weight : 22.2 keg
Dimensions & Weight (Shipping)
Shipping Width : 33 centimetre
Shipping Depth : 61 centimetre
Shipping Height : 38.7 centimetre
Shipping Weight : 25.2 keg
Service & Support
Type : 2-year warranty
Service & Support Details
Service & Support : Limited warranty – 2 years
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Humidity Range Operating : 0 – 95%
Sound Emission : 45 decibel
