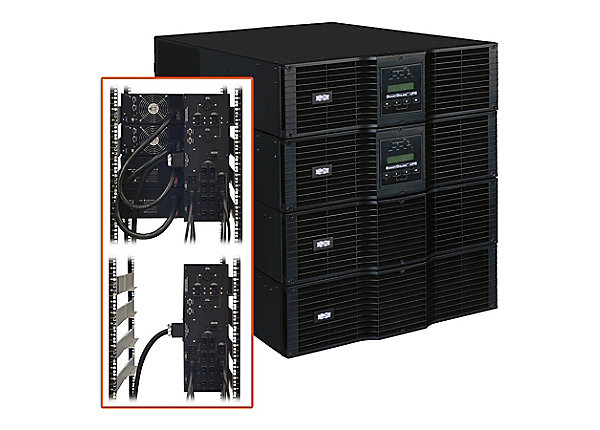

Tripp Lite SmartOnLine EZ-series SU20KRT

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Tripp Lite
Brand : Tripp Lite
Product Line : Tripp Lite
Model : UPS Smart Online 20000VA 18000W Rackmount 20kVA 200-240V USB DB9 Manual Bypass Switch Hot Swap C19 12U
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : Power array
Networking
Remote Management Interface : RS-232, USB
Remote Management Protocol : SNMP, HTTP
Interface Provided
Interfaces : 1 x management (RS-232), 1 x EPO (emergency power off), 1 x management (USB)
Cable Details
Cables Included : USB cable – external, Serial cable – external
Software
Type : TrippLite PowerAlert
Power Device
Form Factor : External
Power Redundancy : Yes
Power Redundancy Scheme : N+1
UPS Technology : On-line
Voltage Provided : AC 200/208/220/230/240 volt
Voltage Provided Margin : ± 2%
UPS Output Waveform : Sinewave
Power Provided : 18 kilograms per millimetere
Power Capacity (of Single Unit) : 10000 volt ampere per kilogram
Power Capacity (VA) : 20000 volt ampere per kilogram
Voltage Required : AC 200/208/220/230/240 volt
Frequency Required : 50/60 hertz
Input Connector Type : Hardwire
Input Connector Qty : 1
Output Connector Type : Power IEC 60320 C19, Power NEMA L6-30
Output Connector Qty : 10
Surge Suppression : Yes
Circuit Protection : Circuit breaker
Power Device Features : Built-in bypass switch, Noise filtering, Cold-start function, Overvoltage protection, Automatic shut down, Undervoltage protection, Audible alarm, LED indicators, Cooling fan
Power Output Connectors Details
Power Output Connectors Details : 2 x power NEMA L6-30, 8 x power IEC 60320 C19
Battery
Run Time (Up To) : 4.3 minute (time unit)
Load Type : At full load
Recharge Time : 8 Hours
Run Time Details
Run Time (Up To) : 12.5 min at half load, 4.3 min at full load
Miscellaneous
Height (Rack Units) : 12
Rack Size : 19″
Rack Size (metric) : 48.3 cm
Equipment Protection Value : 250000 US Dollars
Compliant Standards : UL 1778, RoHS, FCC Part 15 A, CSA, IEC 61000-4-5
Dimensions & Weight
Depth : 82.6 centimetre
Dimensions & Weight (Shipping)
Shipping Width : 102 centimetre
Shipping Depth : 129 centimetre
Shipping Height : 91.4 centimetre
Shipping Weight : 272 keg
Service & Support
Type : 2-year warranty
Service & Support Details
Service & Support : Limited warranty – 2 years
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Humidity Range Operating : 0 – 95%
Sound Emission : 60 dBA
