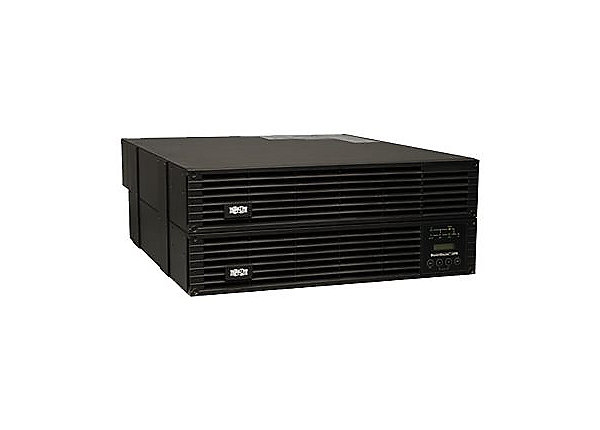

Tripp Lite SmartOnLine E-series SU5000RT4UHV

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Tripp Lite
Brand : Tripp Lite
Product Line : Tripp Lite
Model : UPS Smart Online 5000VA 4500W Rackmount 5kVA 200V/240V USB DB9 4URM ENERGY STAR V2.0
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : RS-232, USB
Expansion Slots
Expansion Slots : 3 (total) / 3 (free) x expansion slot
Interface Provided
Interfaces : 1 x management (USB) – 4 pin USB Type B, 1 x management (RS-232) – 9 pin D-Sub (DB-9), 1 x EPO (emergency power off)
Cable Details
Cables Included : Serial cable – external, USB cable – external, Power cable 3 m
Software
Type : TrippLite PowerAlert
Power Device
Form Factor : External
UPS Technology : On-line
Voltage Provided : AC 200/208/220/230/240 volt
Voltage Provided Margin : ± 2%
Frequency Provided : 50/60 hertz
UPS Output Waveform : Sinewave
Power Provided : 4.5 kilograms per millimetere
Power Capacity (VA) : 5000 volt ampere per kilogram
Voltage Required : AC 200/208/220/230/240 volt
Frequency Required : 50/60 hertz
Input Connector Type : Power NEMA L6-30
Input Connector Qty : 1
Output Connector Type : Power NEMA L6-30, Power NEMA L6-20
Output Connector Qty : 4
Surge Suppression : Yes
Surge Response Time : 0 nanosecond
Circuit Protection : Circuit breaker
Power Device Features : LED indicators, Cold-start function, Internal bypass, Emergency power off, Audible alarm, LCD display
Power Output Connectors Details
Power Output Connectors Details : 2 x power NEMA L6-20, 2 x power NEMA L6-30
Battery
Voltage Provided : 192 volt
Run Time (Up To) : 3.5 minute (time unit)
Load Type : At full load
Recharge Time : 6 Hours
Run Time Details
Run Time (Up To) : 3.5 min at full load
UPS
Expandable Battery : Expandable
Battery Technology : Lead acid
Miscellaneous
Color : Attractive black
Color Category : Black
Included Accessories : Power distribution unit (PDU)
Rack Mounting Kit : Included
Height (Rack Units) : 4
Equipment Protection Value : 250000 US Dollars
Compliant Standards : IEC 61000-4-5, RoHS, FCC Part 15 A, CSA, UL 1778
Dimensions & Weight
Width : 44.5 centimetre
Depth : 52.6 centimetre
Height : 17.4 centimetre
Weight : 51.6 keg
Dimensions & Weight (Shipping)
Shipping Width : 60 centimetre
Shipping Depth : 73.9 centimetre
Shipping Height : 32.3 centimetre
Shipping Weight : 68.9 keg
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Humidity Range Operating : 5 – 90%
Sound Emission : 65 dBA
