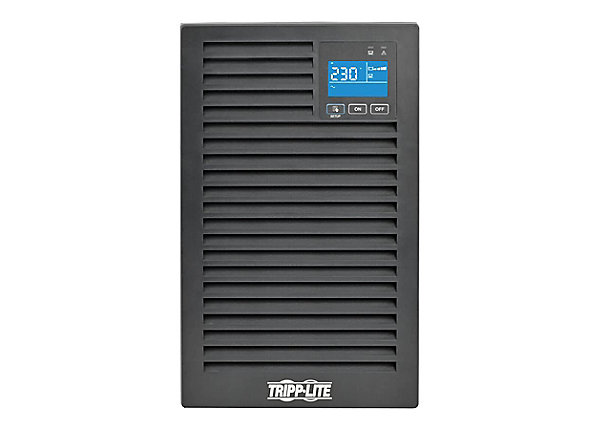

Tripp Lite SmartOnline 230V 3kVA 2700W On-Line Double-Conversion – UPS – 2.

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Tripp Lite
Brand : Tripp Lite
Product Line : Tripp Lite
Model : SmartOnline 230V 3kVA 2700W On-Line Double-Conversion
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : USB, RS-232
Expansion Slots
Expansion Slots : 1 (total) / 1 (free) x expansion slot
Interface Provided
Interfaces : 1 x RS-232 – 9 pin D-Sub (DB-9), 1 x USB – 4 pin USB Type B
Cable Details
Cables Included : 3 x power cable – external, USB cable – external, Serial cable – external
Software
Type : TrippLite PowerAlert
Power Device
Form Factor : External
UPS Technology : On-line
Voltage Provided : AC 220/230/240 volt
Voltage Provided Margin : ± 2%
Frequency Provided : 50/60 hertz
UPS Output Waveform : Sinewave
Power Provided : 2.7 kilograms per millimetere
Power Capacity (VA) : 3000 volt ampere per kilogram
Voltage Required : AC 220/230/240 volt
Input Voltage Range : AC 80 – 280 V
Frequency Required : 50/60 hertz
Input Wiring : 1-phase
Input Connector Type : Power IEC 60320 C20
Input Connector Qty : 1
Output Connector Type : Power IEC 60320 C13, Power IEC 60320 C19
Output Connector Qty : 7
Surge Suppression : Yes
Surge Energy Rating : 425 joules
Efficiency : 92% at 100% Load
Power Factor (PF) : 0.9
Power Device Features : Cold-start function, Noise filtering, Cooling fan, Voltage monitoring, Audible alarm, Eco-Mode, LCD display
Power Output Connectors Details
Power Output Connectors Details : 6 x power IEC 60320 C13 (UPS and surge), 1 x power IEC 60320 C19 (UPS and surge)
Battery
Voltage Provided : 72 volt
Run Time (Up To) : 4.4 minute (time unit)
Load Type : At full load
Recharge Time : 6 Hours
Run Time Details
Run Time (Up To) : 11.2 min at half load, 4.4 min at full load
UPS
Expandable Battery : Expandable
Miscellaneous
Color Category : Black
Compliant Standards : EN 62040-2:2006, IEC 61000-4-5, RoHS, EN 62040-1:2008+A1:2013, ICE 61000-4-2, IEC 61000-4-3, IEC 62040-1:2008
Dimensions & Weight
Width : 19 centimetre
Depth : 36.1 centimetre
Height : 32.5 centimetre
Weight : 24.86 keg
Dimensions & Weight (Shipping)
Shipping Width : 30 centimetre
Shipping Depth : 50.5 centimetre
Shipping Height : 44.2 centimetre
Shipping Weight : 27.5 keg
Service & Support
Type : 2-year warranty
Service & Support Details
Service & Support : Limited warranty – 2 years
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Humidity Range Operating : 0 – 95% (non-condensing)
Sound Emission : 52 dBA
