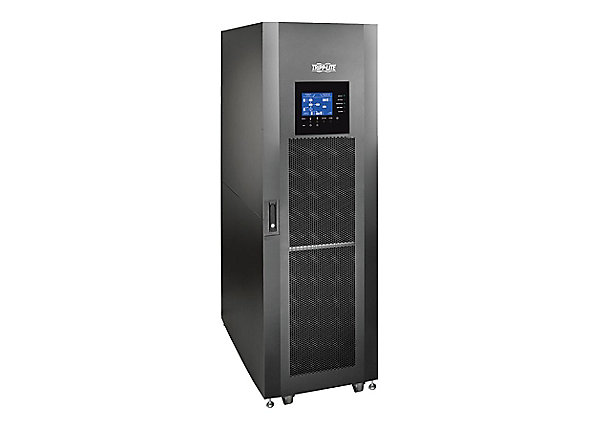

Tripp Lite 80kVA Smart Online 3-Phase UPS Medium Frame Modular Scalable 4 B

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Tripp Lite
Brand : Tripp Lite
Product Line : Tripp Lite
Model : 80kVA Smart Online 3-Phase UPS Medium Frame Modular Scalable 4 Batteries
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : RS-232
Remote Management Protocol : HTTP, SSH, Telnet, SNMP 1, SNMP 2, HTTPS, SNMP 3
Expansion Slots
Expansion Slots : 1 expansion slot
Interface Provided
Interfaces : 1 x management (Fast Ethernet) – RJ-45, 1 x management (RS-232) – 9 pin D-Sub (DB-9)
Power Device
Form Factor : External
UPS Technology : On-line
Voltage Provided : AC 120/127/208/220 volt
Frequency Provided : 50/60 hertz
Power Provided : 72 kilograms per millimetere
Power Capacity (VA) : 80000 volt ampere per kilogram
Voltage Required : AC 120/127/208/220 volt
Frequency Required : 40 – 70 hertz
Input Wiring : 3-phase WYE (star)
Input Connector Type : Hardwire
Output Connector Type : Hardwire
Surge Suppression : Yes
Switchover Time : 0 millisecond
Surge Energy Rating : 2496 joules
Circuit Protection : Circuit breaker
Power Factor (PF) : 0.99
Total Harmonic Distortion (THD) : 2 percent
Power Device Features : LED indicators, Cold-start function, Cooling fan, Hot swappable PSU, Undervoltage protection, DSP technology, Overload protection, Hot-swappable batteries, LCD display, Audible alarm, Overvoltage protection, IGBT rectifier
Power Output Connectors Details
Power Output Connectors Details : Hardwire
Battery
Run Time (Up To) : 4 minute (time unit)
Run Time Details
Run Time (Up To) : 4 min at full load, 8.5 min at half load
UPS
Expandable Battery : Expandable
Batteries Qty : 4
Power Modules Qty : 4
Miscellaneous
Color Category : Black
Compliant Standards : FCC Part 15 A, CSA C22.2 No. 107.3.14, UL 1778 5th edition, NOM, CSA, RoHS
Dimensions & Weight
Width : 60 centimetre
Depth : 110 centimetre
Height : 201 centimetre
Weight : 828.71 keg
Dimensions & Weight (Shipping)
Shipping Width : 75 centimetre
Shipping Depth : 122 centimetre
Shipping Height : 217.5 centimetre
Shipping Weight : 959 keg
Service & Support
Type : 2-year warranty
Service & Support Details
Service & Support : Limited warranty – 2 years
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Humidity Range Operating : 0 – 95% (non-condensing)
Sound Emission : 73 dBA
