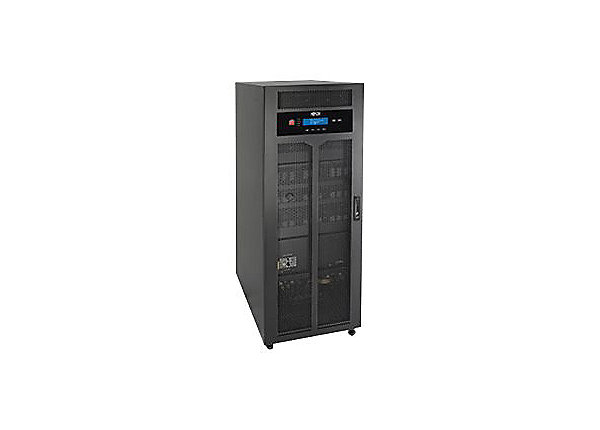

Tripp Lite 30kVA 30kW Smart Online 3-Phase UPS 208/120V 220/127V Tower Exte

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Tripp Lite
Brand : Tripp Lite
Product Line : Tripp Lite
Model : 30kVA 30kW Smart Online 3-Phase UPS 208/120V 220/127V Tower Extended Run Double Conversion DB9
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : RS-232
Expansion Slots
Expansion Slots : 1 (total) / 1 (free) x expansion slot
Interface Provided
Interfaces : 1 x management (RS-232) – 9 pin D-Sub (DB-9), 1 x EPO (emergency power off)
Cable Details
Cables Included : Serial cable – external
Power Device
Form Factor : External
UPS Technology : On-line
Voltage Provided : AC 120/127/208/220 volt
Voltage Provided Margin : ± 1%
Frequency Provided : 50/60 hertz
UPS Output Waveform : Sinewave
Power Provided : 30 kilograms per millimetere
Power Capacity (VA) : 30000 volt ampere per kilogram
Voltage Required : AC 120/127/208/220 volt
Input Wiring : 3-phase WYE (star)
Input Connector Type : Hardwire 4-wire
Input Connector Qty : 1
Output Connector Type : Hardwire
Surge Suppression : Yes
Surge Energy Rating : 9220 joules
Circuit Protection : Circuit breaker
Efficiency : 98% Eco mode
Power Factor (PF) : 0.99
Total Harmonic Distortion (THD) : 4 percent
Power Device Features : Undervoltage protection, Cooling fan, Cold-start function, LCD display, Built-in bypass switch, Automatic shut down, Hot-swappable batteries, IGBT rectifier, Audible alarm, Overvoltage protection
Power Output Connectors Details
Power Output Connectors Details : Hardwire
Battery
Run Time (Up To) : 5.5 minute (time unit)
Load Type : At full load
Run Time Details
Run Time (Up To) : 15.7 min at half load, 5.5 min at full load
Miscellaneous
Color Category : Black
Compliant Standards : IEC 61000-4-2, UL 1778, IEC 61000-4-5, IEC 61000-4-3, EMI, CSA, NOM, IEC 61000-4-4, FCC Part 15 A
Features : Integrated electrical grounding
Dimensions & Weight
Width : 52.1 centimetre
Depth : 80 centimetre
Height : 135.1 centimetre
Weight : 364.69 keg
Dimensions & Weight (Shipping)
Shipping Width : 71.9 centimetre
Shipping Depth : 100.1 centimetre
Shipping Height : 157 centimetre
Shipping Weight : 460 keg
Service & Support
Type : 1-year warranty
Service & Support Details
Service & Support : Limited warranty – 1 year
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Humidity Range Operating : 95% (non-condensing)
Sound Emission : 70 dBA
