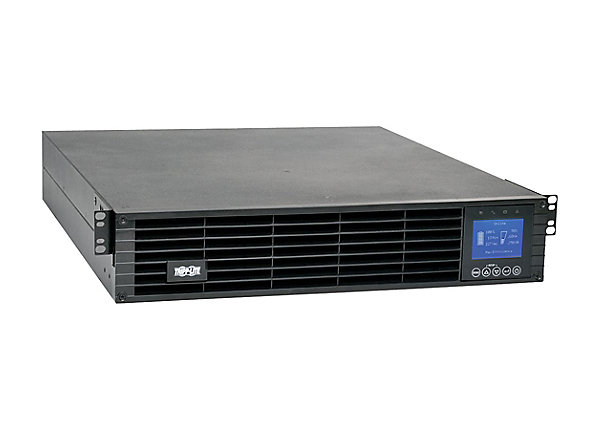

Tripp Lite 1500VA 1350W UPS Smart Online LCD USB DB9 208/230V 2URM – UPS –

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Tripp Lite
Brand : Tripp Lite
Product Line : Tripp Lite
Model : 1500VA 1350W UPS Smart Online LCD USB DB9 208/230V 2URM
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : RS-232, USB
Expansion Slots
Expansion Slots : 1 (total) / 1 (free) x expansion slot
Interface Provided
Interfaces : 1 x RS-232 – 9 pin D-Sub (DB-9), 1 x EPO (emergency power off) – RJ-11, 1 x USB – 4 pin USB Type B, 1 x serial – 8 pin mini-DIN
Cable Details
Cables Included : USB cable – external, Serial cable – external, 2 x power cable – external
Software
Type : TrippLite PowerAlert
Power Device
Form Factor : Rack-mountable
UPS Technology : On-line
Voltage Provided : AC 200/208/220/230/240 volt
Frequency Provided : 50/60 hertz
UPS Output Waveform : Sinewave
Power Provided : 1.35 kilograms per millimetere
Power Capacity (VA) : 1500 volt ampere per kilogram
Voltage Required : AC 200/208/220/230/240 volt
Input Wiring : 1-phase
Input Connector Type : Power IEC 60320 C14
Input Connector Qty : 1
Output Connector Type : Power IEC 60320 C13
Output Connector Qty : 6
Surge Suppression : Yes
Surge Energy Rating : 936 joules
Power Factor Correction : Power Factor Correction (PFC)
Efficiency : 93%
Power Factor (PF) : 0.9
Power Device Features : Cooling fan, Hot-swappable batteries, LCD display, Cold-start function, LED indicators, Overvoltage protection, Undervoltage protection, Energy-Saving Outlets, 4 switchable sockets, Audible alarm
Power Output Connectors Details
Power Output Connectors Details : 6 x power IEC 60320 C13 (UPS and surge)
Dataline Surge Protection
Dataline Surge Protection : Network/phone line – RJ-45/RJ-11 – 1 input line / 1 output line
Battery
Run Time (Up To) : 4.5 minute (time unit)
Load Type : At full load
Run Time Details
Run Time (Up To) : 4.5 min at full load, 12.6 min at half load
UPS
Expandable Battery : Expandable
System Requirements
OS Required : Apple MacOS X, Microsoft Windows
Miscellaneous
Color Category : Black
Rack Mounting Kit : Included
Height (Rack Units) : 2
Rack Size : 19″
Rack Size (metric) : 48.3 cm
Equipment Protection Value : 250000 US Dollars
Compliant Standards : EAC, UL 1778, SASO, IEC 62040-1:2008, RoHS, FCC Part 15, IEC 62040-2:2006, CSA
Dimensions & Weight
Width : 43.8 centimetre
Depth : 49.6 centimetre
Height : 8.8 centimetre
Weight : 20.4 keg
Dimensions & Weight (Shipping)
Shipping Width : 56.5 centimetre
Shipping Depth : 70 centimetre
Shipping Height : 24 centimetre
Shipping Weight : 24.5 keg
Service & Support
Type : 2-year warranty
Service & Support Details
Service & Support : Limited warranty – 2 years
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Humidity Range Operating : 5 – 95% (non-condensing)
Sound Emission : 45 dBA
