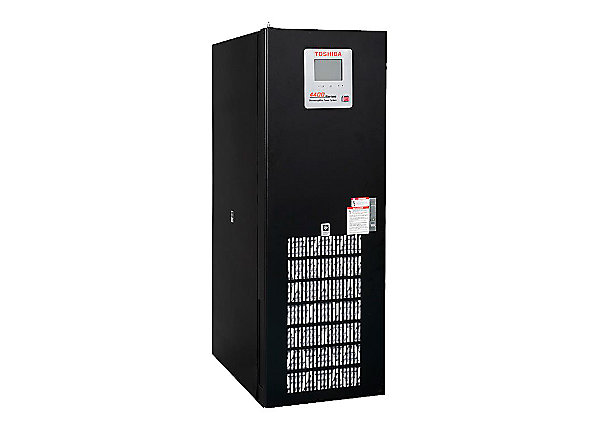

Toshiba 4400 Series – UPS – 15000 VA

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Toshiba UPS
Brand : Toshiba
Product Line : Toshiba
Model : 4400 Series
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : RS-232
Interface Provided
Interfaces : 1 x management (RS-232) – 9 pin D-Sub (DB-9)
Power Device
Form Factor : External
Voltage Provided : AC 120/208 volt
Voltage Provided Margin : ± 2%
Power Capacity (VA) : 15000 volt ampere per kilogram
Voltage Required : AC 120/208 volt
Voltage Required Margin : + 10% / – 15%
Frequency Required : 50/60 hertz
Frequency Required Margin : ± 5Hz
Input Wiring : 3-phase
Circuit Protection : Fuse
Efficiency : 91% at 100% Load, 88.8% at 25% Load
Power Factor (PF) : 0.98
Power Device Features : Built-in bypass switch, Output voltage adjustment, Surge & inrush protection, Touch screen LCD display, Automatic Transfer Switch (ATS), Cold-start function, Emergency power off, Front to top airflow
Battery
Run Time (Up To) : 7 minute (time unit)
Load Type : At full load
Run Time Details
Run Time (Up To) : 7 min at full load, 11.5 min at 60% load, 10 min at 70% load, 17.5 min at 40% load, 7.5 min at 90% load, 9 min at 80% load, 28.5 min at 20% load, 21.5 min at 30% load, 13.5 min at half load, 48 min at 10% load
UPS
Batteries Qty : 24
Power Modules Qty : 2
Battery Capacity : 9 additional minute
Miscellaneous
Color : O’Brien Black
Color Category : Black
Included Accessories : Dry contact sensor
Compliant Standards : UL 1778, OSHA, cUL, ISO 9000, RoHS, ISO 14001:2004
Dimensions & Weight
Width : 51.1 centimetre
Depth : 94.9 centimetre
Height : 165 centimetre
Weight : 458 keg
Service & Support
Type : 3-year warranty
Bundled Services : Toshiba Startup Service
Service & Support Details
Service & Support : Limited warranty – 3 years – on-site, Technical support – availability: 24 hours a day / Monday-Sunday
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Humidity Range Operating : 5 – 95% (non-condensing)
