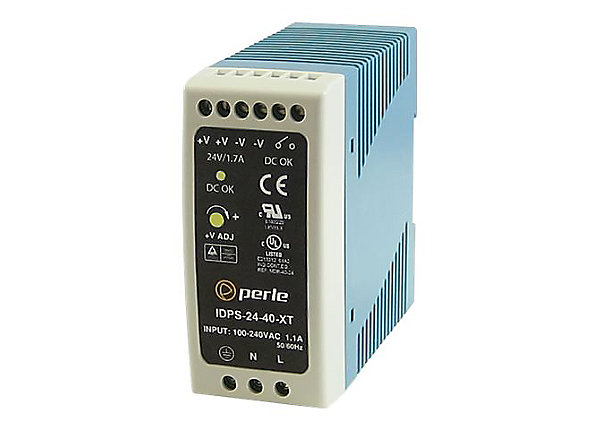

Perle IDPS-24-40-XT – power supply – 40 W

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Perle Systems
Brand : Perle
Product Line : Perle
Model : IDPS-24-40-XT
Packaged Quantity : 1
General
Subcategory : Power supplies
Product Type : Power supply
Power Device
Form Factor : DIN rail mountable
Power Supply Compatibility : Network hardware
Voltage Provided : 24 volt
Voltage Provided Margin : ± 1%
Power Provided : 40 watt
Voltage Required : AC 85-264/ DC 120-370 volt
Frequency Required : 47 – 63 hertz
Input Connector Type : 3 pin terminal block
Output Connector Qty : 2
Efficiency : 88%
Power Device Features : Cold-start function, Overvoltage protection, Overload protection, LED indicators
Power Output Connectors Details
Power Output Connectors Details : 2 x 4 pin terminal block
Miscellaneous
Color Category : Blue, White
MTBF : 301,700 Hours
Compliant Standards : UL 508, EN 61000-3-3, EN 61000-4-3, EN55024, EN 61000-6-2, RoHS, EN 61204-3, EN55022, TUV, CISPR 22, EN 61000-4-2, EN 61000-3-2, UL 60950-1, EN 61000-4-6, IEC 60068-2-6, REACH, EN 61000-4-5, EN 61000-4-8, EN 61000-4-11, EN 55011, WEEE, EN 60950-1, EN 61000-4-4
Dimensions & Weight
Width : 4 centimetre
Depth : 9 centimetre
Height : 10 centimetre
Service & Support
Type : 2-year warranty
Service & Support Details
Service & Support : Limited warranty – 2 years
Environmental Parameters
Min Operating Temperature : -20 degree Celsius
Max Operating Temperature : 70 degree Celsius
Humidity Range Operating : 20 – 90% (non-condensing)
