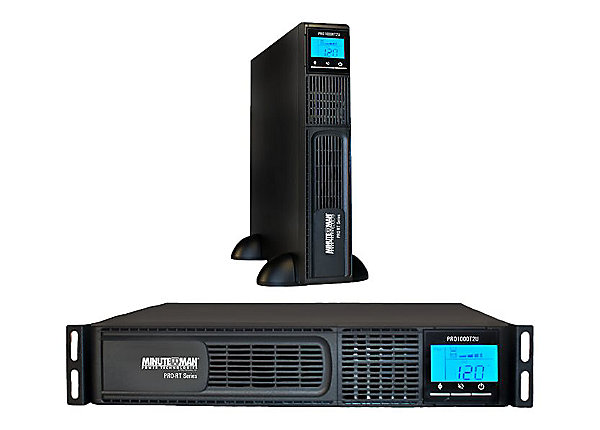

Minuteman PRO1500RT2UNC – UPS – 1050 W – 1500 VA

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Minuteman
Brand : MINUTEMAN
Product Line : Minuteman
Model : PRO1500RT2UNC
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : Ethernet, USB, RS-232
Remote Management Protocol : SFTP, SNMP 3, HTTPS, SSH, SNMP 1, Telnet, HTTP, SNMP 2c
Expansion Slots
Expansion Slots : 1 (total) / 0 (free) x expansion slot
Interface Provided
Interfaces : 1 x management (RS-232) – RJ-45, 1 x management (Ethernet) – RJ-45, 1 x management (USB) – 4 pin USB Type B
Software
Type : Minuteman SentryHD
Power Device
Form Factor : Rack-mountable / external
UPS Technology : Line interactive
Voltage Provided : AC 120 volt
Voltage Provided Margin : ± 5%
Frequency Provided : 60 hertz
Frequency Provided Margin : ± 0.5Hz
UPS Output Waveform : Stepped approximation to a sinewave
Power Provided : 1050 watt
Power Capacity (VA) : 1500 volt ampere per kilogram
Voltage Required : AC 120 volt
Input Voltage Range : AC 90 – 150 V
Frequency Required : 60 hertz
Frequency Required Margin : ± 6Hz
Input Connector Type : Power NEMA 5-15P
Input Connector Qty : 1
Output Connector Qty : 8
Surge Suppression : Yes
Switchover Time : 6 millisecond
Surge Energy Rating : 960 joules
Circuit Protection : Circuit breaker
Power Factor (PF) : 0.7
Power Device Features : Auto restart, LCD display, Hot-swappable batteries, Internal bypass, Automatic Voltage Regulation (AVR)
Power Output Connectors Details
Power Output Connectors Details : 8 x power NEMA 5-15R (UPS and surge)
Dataline Surge Protection
Dataline Surge Protection : Coaxial – 1 input line / 1 output line, Network/phone line – RJ-45/RJ-11 – 1 input line / 1 output line
Battery
Run Time (Up To) : 5 minute (time unit)
Load Type : At full load
Lead Acid Battery Features : Sealed, Maintenance free
Run Time Details
Run Time (Up To) : 5 min at full load, 15 min at half load
Miscellaneous
Color Category : Black
Rack Mounting Kit : Included
Height (Rack Units) : 2
Equipment Protection Value : 100000 US Dollars
Compliant Standards : EMI, cTUVus, FCC Class B certified, RoHS2
Dimensions & Weight
Width : 48 centimetre
Depth : 40.9 centimetre
Height : 8.6 centimetre
Weight : 16.2 keg
Service & Support
Type : 3-year warranty
Service & Support Details
Service & Support : Limited warranty – parts and labor – 3 years
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Humidity Range Operating : 5 – 95% (non-condensing)
