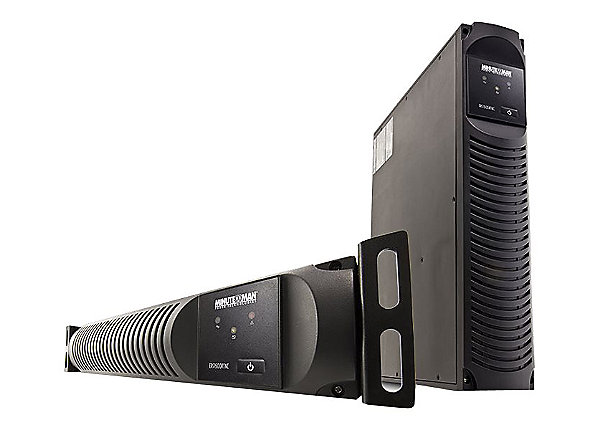

Minuteman ERS Ruggedized ERS1500RTNC – UPS – 1050 Watt – 1500 VA

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Minuteman
Brand : MINUTEMAN
Product Line : Minuteman ERS Ruggedized
Model : ERS1500RTNC
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : Ethernet, RS-232, USB
Remote Management Protocol : SNMP
Interface Provided
Interfaces : 1 x management (RS-232) – 9 pin D-Sub (DB-9), 1 x management (USB) – 4 pin USB Type B
Cable Details
Cables Included : Power cable 3 m
Power Device
Form Factor : Rack-mountable / external
UPS Technology : Line interactive
Voltage Provided : AC 120 volt
Voltage Provided Margin : ± 5%
Frequency Provided : 50/60 hertz
UPS Output Waveform : Stepped approximation to a sinewave
Power Provided : 1050 watt
Power Capacity (VA) : 1500 volt ampere per kilogram
Voltage Required : AC 120 volt
Input Voltage Range : AC 90 – 150 V
Frequency Required : 50/60 hertz
Output Connector Qty : 8
Surge Suppression : Yes
Switchover Time : 10 millisecond
Surge Energy Rating : 1140 joules
Efficiency : 65%
Power Factor (PF) : 0.7
Power Output Connectors Details
Power Output Connectors Details : 6 x power (UPS and surge), 2 x power (surge)
Dataline Surge Protection
Dataline Surge Protection : Network/phone line – 1 input line / 1 output line
Battery
Run Time (Up To) : 3 minute (time unit)
Load Type : At full load
Lead Acid Battery Features : Maintenance free, Spill-proof, Sealed
Run Time Details
Run Time (Up To) : 13 min at half load, 3 min at full load
UPS
Battery Technology : Lead acid
Miscellaneous
Color Category : Black
Equipment Protection Value : 100000 US Dollars
Compliant Standards : cTUVus, FCC Class B certified, UL 1778, RoHS, CSA 22.2
Dimensions & Weight
Width : 39.8 centimetre
Depth : 44 centimetre
Height : 8.9 centimetre
Weight : 19.5 keg
Dimensions & Weight (Shipping)
Shipping Width : 52.6 centimetre
Shipping Depth : 55.5 centimetre
Shipping Height : 21.5 centimetre
Shipping Weight : 22 keg
Service & Support
Type : 1-year warranty
Service & Support Details
Service & Support : Limited warranty – parts and labor – 1 year
Environmental Parameters
Min Operating Temperature : -15 degree Celsius
Max Operating Temperature : 50 degree Celsius
Humidity Range Operating : 0 – 95% (non-condensing)
