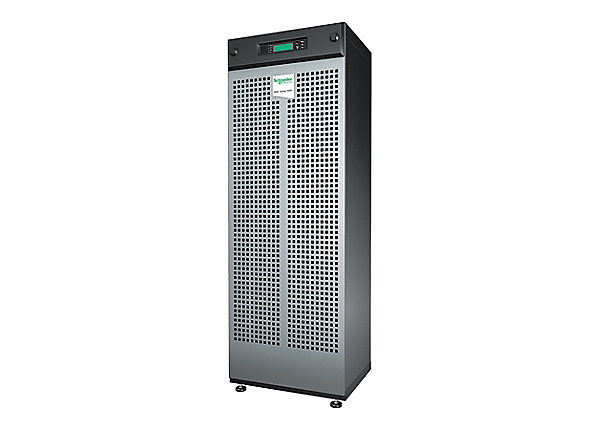

MGE Galaxy 3500 with 4 Battery Modules

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : APC
Brand : MGE
Product Line : MGE Galaxy
Model : 3500 with 4 Battery Modules
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : RS-232
Remote Management Protocol : SNMP, HTTP
Expansion Slots
Expansion Slots : SmartSlot
Interface Provided
Interfaces : 1 x management (RS-232)
Cable Details
Cables Included : Serial cable – external
Software
Type : Drivers & Utilities
Power Device
Form Factor : External
UPS Technology : On-line
Voltage Provided : AC 120/208/220 volt
Voltage Provided Margin : ± 3%
Frequency Provided : 57 – 63 hertz
UPS Output Waveform : Sinewave
Power Provided : 24 kilograms per millimetere
Power Capacity (VA) : 30000 volt ampere per kilogram
Voltage Required : AC 208 volt
Input Voltage Range : AC 160 – 240 V
Frequency Required : 40 – 70 hertz
Input Wiring : 3-phase
Input Connector Type : Hardwire 5-wire (3PH + N + G)
Output Connector Type : Hardwire 4-wire (3PH + G), Terminal block (screw), Hardwire 5-wire (3PH + N + G)
Output Connector Qty : 3
Power Device Features : Built-in maintenance bypass, Built-in static bypass
Power Output Connectors Details
Power Output Connectors Details : 1 x hardwire 4-wire (3PH + G), 1 x hardwire 5-wire (3PH + N + G), 1 x terminal block (screw)
Battery
Run Time (Up To) : 9.8 minute (time unit)
Load Type : At full load
Recharge Time : 5 Hours
Run Time Details
Run Time (Up To) : 9.8 min at full load
UPS
Expandable Battery : Expandable
Batteries Qty : 4
Battery Technology : Lead acid
Miscellaneous
Included Accessories : Bolt down brackets
Compliant Standards : ISO 14001, cUL, UL 1778, ISO 9001
Dimensions & Weight
Width : 52.3 centimetre
Depth : 83.8 centimetre
Height : 149 centimetre
Weight : 629 keg
Dimensions & Weight (Shipping)
Shipping Width : 65 centimetre
Shipping Depth : 106 centimetre
Shipping Height : 164 centimetre
Shipping Weight : 660 keg
Service & Support
Type : 1-year warranty
Service & Support Details
Service & Support : Limited warranty – 1 year
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Humidity Range Operating : 0 – 95%
Sound Emission : 55 dBA
