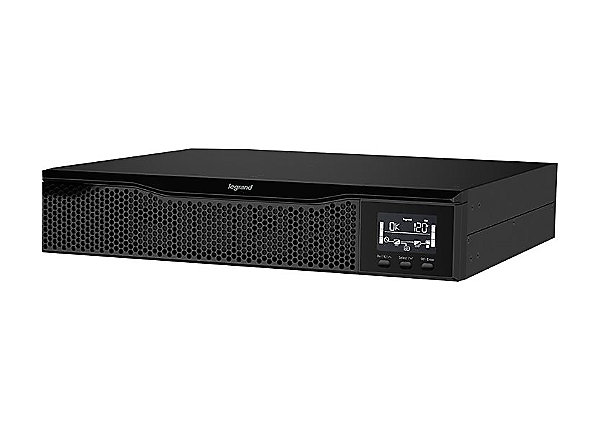

Legrand UPS, Online, LCD, 1500VA, 120V, 2U, (8) 5-15R, 5-15P Cord – UPS – 1

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Cables To Go
Brand : Legrand
Product Line : Legrand
Model : UPS, Online, LCD, 1500VA, 120V, 2U, (8) 5-15R, 5-15P Cord
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : USB, RS-232
Interface Provided
Interfaces : RS-232 – 9 pin D-Sub (DB-9), USB – 4 pin USB Type B
Power Device
Form Factor : Rack-mountable
UPS Technology : On-line
Voltage Provided : AC 100/110/115/120/127 volt
Frequency Provided : 47 – 53 / 57 – 63 hertz
UPS Output Waveform : Sinewave
Power Provided : 1300 watt
Power Capacity (VA) : 1500 volt ampere per kilogram
Voltage Required : AC 80 – 150 volt
Voltage Required Margin : + 5% / – 5%
Frequency Required : 40 – 70 hertz
Input Wiring : 1-phase
Input Connector Type : Power NEMA 5-15P
Input Connector Qty : 1
Output Connector Qty : 8
Surge Suppression : Yes
Switchover Time : 4 millisecond
Efficiency : 89% at 100% AC mode, 96% at 100% Eco mode, 88% at 100% Battery mode
Power Factor (PF) : 0.9
Power Device Features : Zero transfer time, Overload protection, Pure sinewave output, Double conversion, Input power factor correction, Wide input voltage range, LCD display, Programmable outlet bank, Audible alarm
Power Output Connectors Details
Power Output Connectors Details : 8 x power NEMA 5-15R (surge)
Battery
Included Qty : 3
Voltage Provided : 12 volt
Capacity (Ah) : 9 additional minute
Run Time (Up To) : 3 minute (time unit)
Load Type : At full load
Recharge Time : 3 hour(s)
Run Time Details
Run Time (Up To) : 10.1 min at half load, 3 min at full load
UPS
Batteries Qty : 3
Battery Capacity : 9 additional minute
System Requirements
OS Required : Microsoft Windows Server 2003, UNIX, Apple MacOS, Microsoft Windows Server 2008, Linux, Microsoft Windows 2000/XP/Vista/7/8/10
Miscellaneous
Color : Black
Color Category : Black
Height (Rack Units) : 2
Compliant Standards : RoHS, FCC Part 15 A, CSA C22.2 No. 107.3.14, UL 1778, cTUVus
Dimensions & Weight
Width : 43.8 centimetre
Depth : 41 centimetre
Height : 8.8 centimetre
Weight : 15.5 keg
Service & Support
Type : 2-year warranty
Service & Support Details
Service & Support : Limited warranty – 2 years
Environmental Parameters
Min Operating Temperature : -25 degree Celsius
Max Operating Temperature : 40 degree Celsius
Humidity Range Operating : 20 – 95% (non-condensing)
Sound Emission : 50 dBA
