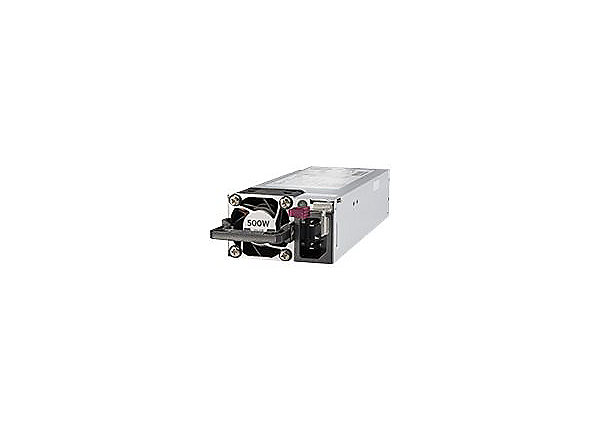

HPE – power supply – hot-plug / redundant – 500 Watt – 563 VA

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : HP Networking
Brand : HPE
Product Line : HPE
Packaged Quantity : 1
General
Subcategory : Power supplies
Product Type : Power supply – hot-plug / redundant
Power Device
Form Factor : Plug-in module
Specification Compliance : Flex Slot
Power Supply Compatibility : PC/Server
Power Provided : 500 watt
Power Capacity (VA) : 563 volt ampere per kilogram
Voltage Required : AC 100-240 volt
Frequency Required : 50 – 60 hertz
Input Connector Type : Power IEC 60320 C14
Efficiency : 94%
80 PLUS Certification : 80 PLUS Platinum
Miscellaneous
Compliant Standards : CISPR Class A, WEEE, CCC, Low halogen, UL, KCC, C-Tick, TUV, BSMI, cUL
Dimensions & Weight
Width : 6.8 centimetre
Depth : 22.53 centimetre
Height : 4.04 centimetre
Weight : 910 gram
Dimensions & Weight (Shipping)
Shipping Width : 19.05 centimetre
Shipping Depth : 37.47 centimetre
Shipping Height : 14.61 centimetre
Shipping Weight : 1.59 keg
Environmental Parameters
Min Operating Temperature : 5 degree Celsius
Max Operating Temperature : 55 degree Celsius
Humidity Range Operating : 5 – 95% (non-condensing)
Compatibility
Compatible With : HPE Cloudline CL2600 Gen10 (500 Watt), CL2600 Gen10 Network Choice (500 Watt), CL2600 Gen10 Premium (500 Watt), CL2600 Gen10 Premium Network Choice (500 Watt), CL2800 Gen10 (500 Watt) ¦ HPE ProLiant DL160 Gen10, DL160 Gen10 Base (500 Watt), DL160 Gen10 Entry (500 Watt), DL180 Gen10 (500 Watt), DL180 Gen10 SMB (500 Watt), DL325 Gen10 Base (500 Watt), DL360 Gen10 (500 Watt), DL360 Gen10 Base (500 Watt), DL360 Gen10 Entry (500 Watt), DL360 Gen10 High Performance (500 Watt), DL360 Gen10 Low (500 Watt), DL360 Gen10 Network Choice (500 Watt), DL360 Gen10 Performance (500 Watt), DL360 Gen10 SMB (500 Watt), DL360 Gen10 SMB Network Choice (500 Watt), DL360 Gen10 Solution (500 Watt), DL380 Gen10 (500 Watt), DL380 Gen10 Base (500 Watt), DL380 Gen10 Entry (500 Watt), DL380 Gen10 Entry SMB (500 Watt), DL380 Gen10 for Cohesity DataPlatform (500 Watt), DL380 Gen10 High Performance (500 Watt), DL380 Gen10 Network Choice (500 Watt), DL380 Gen10 NVMe All Flash Server for Datera (500 Watt), DL380 Gen10 Performance (500 Watt), DL380 Gen10 SMB (500 Watt), DL380 Gen10 Solution (500 Watt), DL385 Gen10 (500 Watt), DL385 Gen10 Base (500 Watt), DL385 Gen10 Entry (500 Watt), DL385 Gen10 High-Performance (500 Watt), DL385 Gen10 Performance (500 Watt), DL385 Gen10 Solution (500 Watt), DL560 Gen10 (500 Watt), DL560 Gen10 Base (500 Watt), DL560 Gen10 Entry (500 Watt), DL560 Gen10 Performance (500 Watt), ML110 Gen10, ML110 Gen10 Entry, ML110 Gen10 Performance, ML30 Gen10 (500 Ah), ML30 Gen10 Entry (500 Ah), ML30 Gen10 Performance (500 Ah), ML30 Gen10 Solution (500 Ah), ML350 Gen10 (500 Watt), ML350 Gen10 Base (500 Watt), ML350 Gen10 Entry (500 Watt), ML350 Gen10 High Performance (500 Watt), ML350 Gen10 Performance (500 Watt), ML350 Gen10 Solution (500 Watt), ML350 Gen10 Sub-Entry (500 Watt) ¦ HPE SimpliVity 325 Gen10 Node (500 Watt)
