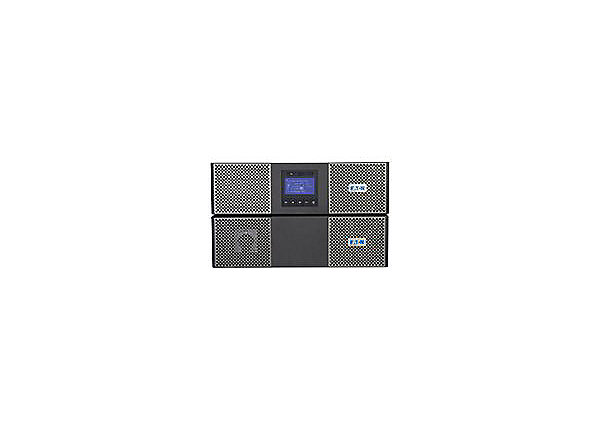

Eaton 9PX 9PX5KP1 – UPS – 4.5 kW – 5000 VA – with 6 kVA Power Pass Distribu

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Powerware Systems
Brand : Eaton
Product Line : Eaton 9PX
Model : 9PX5KP1
Bundled with : 6 kVA Power Pass Distribution Module
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : Ethernet 10/100, USB, RS-232
Remote Management Protocol : CLI, SNMP 1, SSH, SNMP 3, Telnet, TFTP, HTTP
Expansion Slots
Expansion Slots : 1 (total) / 0 (free) x expansion slot
Interface Provided
Interfaces : 1 x RS-232 – 9 pin D-Sub (DB-9), 1 x management (Ethernet) – RJ-45, 1 x EPO (emergency power off), 1 x USB – 4 pin USB Type B
Cable Details
Cables Included : USB cable – external, Serial cable – external
Software
Type : Intelligent Power Software Suite
Power Device
Form Factor : External
UPS Technology : On-line
Voltage Provided : AC 120/208 volt
Frequency Provided : 50/60 hertz
Power Provided : 4.5 kilograms per millimetere
Power Capacity (VA) : 5000 volt ampere per kilogram
Voltage Required : AC 200/208/220/230/240 volt
Input Voltage Range : AC 176 – 276 V
Input Connector Type : Power NEMA L6-30
Surge Suppression : Yes
Circuit Protection : Circuit breaker
Power Factor Correction : Power Factor Correction (PFC)
Power Device Features : LED indicators, Advance Battery Management (ABM), Deep discharge protection, Automatic self-test, LCD display
Power Output Connectors Details
Power Output Connectors Details : 1 x power NEMA L14-30, 6 x power NEMA 5-20, 1 x power NEMA L6-30
Battery
Run Time (Up To) : 13 minute (time unit)
Load Type : At half load
Run Time Details
Run Time (Up To) : 13 min at half load, 10 min at 70% load
UPS
Expandable Battery : Expandable
Supported Power Modules Qty : 4
System Requirements
OS Required : Linux, Microsoft Windows Server 2008, Microsoft Windows Vista / XP / 7, Apple MacOS X
Miscellaneous
Color : Black, Silver
Color Category : Silver, Black
Rack Mounting Kit : Included
Height (Rack Units) : 6
Rack Size : 19″
Rack Size (metric) : 48.3 cm
Equipment Protection Value : 150000 US Dollars
Compliant Standards : IEC 62040-2, IEC 62040-1-1, UL, FCC Class A certified, CSA 22.2, EN 62040-2, UL 1778, IEC 62040-3, EN 62040-1-1, TUV, CB
Dimensions & Weight
Width : 43.9 centimetre
Depth : 72.1 centimetre
Height : 25.9 centimetre
Weight : 92.1 keg
Service & Support
Type : 2-year warranty
Service & Support Details
Service & Support : Limited warranty – 2 years
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Sound Emission : 45 decibel
