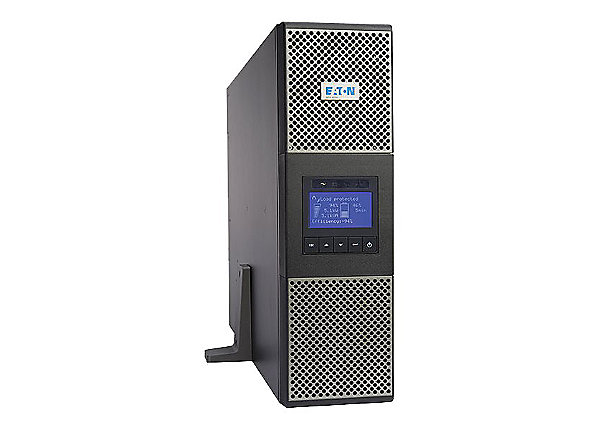

Eaton 9PX 9PX5K – UPS – 4.5 kW – 5000 VA

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Eaton Power Quality
Brand : Eaton
Product Line : Eaton 9PX
Model : 9PX5K
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : Ethernet 10/100, RS-232, USB
Remote Management Protocol : HTTP, TFTP, CLI, Telnet, SNMP 3, SSH, SNMP 1
Expansion Slots
Expansion Slots : 1 (total) / 0 (free) x expansion slot
Interface Provided
Interfaces : 1 x EPO (emergency power off), 1 x management (Ethernet) – RJ-45, 1 x USB – 4 pin USB Type B, 1 x RS-232 – 9 pin D-Sub (DB-9)
Cable Details
Cables Included : Power cable, Serial cable – external, USB cable – external
Software
Type : Intelligent Power Software Suite
Power Device
Form Factor : External
UPS Technology : On-line
Voltage Provided : AC 208 volt
Frequency Provided : 50/60 hertz
Power Provided : 4.5 kilograms per millimetere
Power Capacity (VA) : 5000 volt ampere per kilogram
Voltage Required : AC 200/208/220/230/240 volt
Input Voltage Range : AC 176 – 276 V
Input Connector Type : Power NEMA L6-30
Surge Suppression : Yes
Circuit Protection : Circuit breaker
Power Factor Correction : Power Factor Correction (PFC)
Power Device Features : LED indicators, LCD display, Automatic self-test, Advance Battery Management (ABM), Deep discharge protection
Power Output Connectors Details
Power Output Connectors Details : 2 x power NEMA L6-30, 2 x power NEMA L6-20, 1 x hardwire
Battery
Run Time (Up To) : 13 minute (time unit)
Load Type : At half load
Run Time Details
Run Time (Up To) : 10 min at 70% load, 13 min at half load
UPS
Expandable Battery : Expandable
Supported Power Modules Qty : 4
System Requirements
OS Required : Microsoft Windows Vista / XP / 7, Microsoft Windows Server 2008, Apple MacOS X, Linux
Miscellaneous
Color : Silver, Black
Color Category : Silver, Black
Rack Mounting Kit : Included
Height (Rack Units) : 3
Rack Size : 19″
Rack Size (metric) : 48.3 cm
Equipment Protection Value : 150000 US Dollars
Compliant Standards : UL, CSA 22.2, IEC 62040-3, FCC Class A certified, UL 1778, TUV, IEC 62040-2, EN 62040-2, CB, IEC 62040-1-1, EN 62040-1-1
Dimensions & Weight
Width : 43.9 centimetre
Depth : 72.1 centimetre
Height : 13 centimetre
Weight : 48.1 keg
Service & Support
Type : 2-year warranty
Service & Support Details
Service & Support : Limited warranty – 2 years
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Sound Emission : 45 decibel
