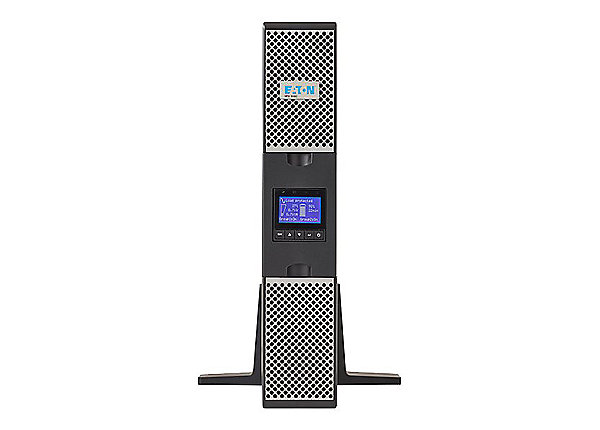

Eaton 9PX 9PX3000GLRT – UPS – 3000 W – 3000 VA

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Powerware Systems
Brand : Eaton
Product Line : Eaton 9PX
Model : 9PX3000GLRT
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : RS-232, USB
Expansion Slots
Expansion Slots : 1 (total) / 1 (free) x expansion slot
Interface Provided
Interfaces : 1 x management (RS-232), 1 x USB
Cable Details
Cables Included : Serial cable – external, Power cable 1.8 m, USB cable – external
Software
Type : Eaton Intelligent Power Protector
Power Device
Form Factor : Rack-mountable / external
UPS Technology : On-line
Voltage Provided : AC 200/208/220/230/240 volt
Voltage Provided Margin : ± 1%
Power Provided : 3000 watt
Power Capacity (VA) : 3000 volt ampere per kilogram
Voltage Required : AC 200/208/220/230/240 volt
Input Voltage Range : AC 176 – 276 / 100 – 276 V
Frequency Required : 50/60 hertz
Input Connector Type : Power NEMA L6-20P, Power IEC 60320 C20
Input Connector Qty : 1
Output Connector Type : Power NEMA L6-30, Power NEMA L6-20
Output Connector Qty : 3
Efficiency : 93%
Power Factor (PF) : 0.99
Total Harmonic Distortion (THD) : 3 percent
Power Device Features : Automatic self-test, LED indicators, LCD display, Remote Emergency Power Off (REPO), Advance Battery Management (ABM), Cold-start function
Power Output Connectors Details
Power Output Connectors Details : 1 x power NEMA L6-30, 2 x power NEMA L6-20
Battery
Lead Acid Battery Features : Maintenance free, Sealed
Run Time Details
Run Time (Up To) : 40 min at 500 Watts, 4 min at 3000 Watts, 19 min at 1000 Watts, 7 min at 2000 Watts, 11 min at 1500 Watts
Miscellaneous
Color : Black and silver
Color Category : Silver, Black
Included Accessories : Tower stand
Rack Mounting Kit : Included
Height (Rack Units) : 2
Compliant Standards : cULus, IEC 62040-2 class B, VCCI Class B, FCC Part 15 Class B, CISPR 22 Class B, ANSI C62.41, RoHS, NOM
Environmental Standards
ENERGY STAR : Yes
Dimensions & Weight
Width : 44 centimetre
Depth : 60.5 centimetre
Height : 8.65 centimetre
Weight : 27.4 keg
Service & Support
Type : 2-year warranty
Service & Support Details
Service & Support : Limited warranty – 2 years
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Sound Emission : 47 decibel
