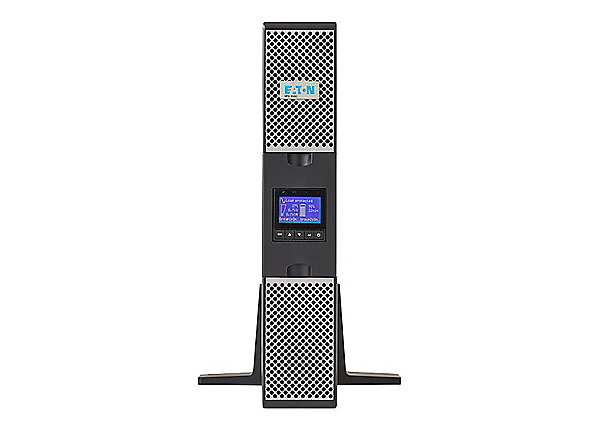

Eaton 9PX 9PX2000RTN – UPS – 1800 W – 2000 VA

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Powerware Systems
Brand : Eaton
Product Line : Eaton 9PX
Model : 9PX2000RTN
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : Ethernet, RS-232, USB
Expansion Slots
Expansion Slots : 1 (total) / 0 (free) x expansion slot
Interface Provided
Interfaces : 1 x management (Ethernet) – RJ-45, 1 x USB, 1 x management (RS-232)
Cable Details
Cables Included : Serial cable – external, Power cable – integrated – 2.44 m, USB cable – external
Software
Type : Eaton Intelligent Power Protector
Power Device
Form Factor : Rack-mountable / external
UPS Technology : On-line
Voltage Provided : AC 100/110/120/125 volt
Voltage Provided Margin : ± 1%
Power Provided : 1800 watt
Power Capacity (VA) : 2000 volt ampere per kilogram
Voltage Required : AC 100/110/120/125 volt
Input Voltage Range : AC 100 – 144 / 60 – 144 V
Frequency Required : 50/60 hertz
Input Connector Type : Power NEMA 5-20P
Input Connector Qty : 1
Output Connector Type : Power NEMA 5-20R, Power NEMA L5-20
Output Connector Qty : 7
Efficiency : 91%
Power Factor (PF) : 0.99
Total Harmonic Distortion (THD) : 3 percent
Power Device Features : Automatic self-test, LED indicators, Remote Emergency Power Off (REPO), Advance Battery Management (ABM), Cold-start function
Power Output Connectors Details
Power Output Connectors Details : 1 x power NEMA L5-20, 6 x power NEMA 5-20R
Battery
Lead Acid Battery Features : Maintenance free, Sealed
UPS
Battery Technology : Lead acid
Miscellaneous
Color : Black and silver
Color Category : Black, Silver
Included Accessories : 4-post rail kit
Height (Rack Units) : 2
Compliant Standards : FCC Part 15 Class B, CISPR 22, IEC 62040-2, NOM, RoHS, VCCI Class B, ANSI C62.41, cULus
Environmental Standards
ENERGY STAR : Yes
Dimensions & Weight
Width : 44 centimetre
Depth : 60.5 centimetre
Height : 8.65 centimetre
Weight : 27.9 keg
Service & Support
Type : 2-year warranty
Service & Support Details
Service & Support : Limited warranty – 2 years
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Sound Emission : 47 decibel
