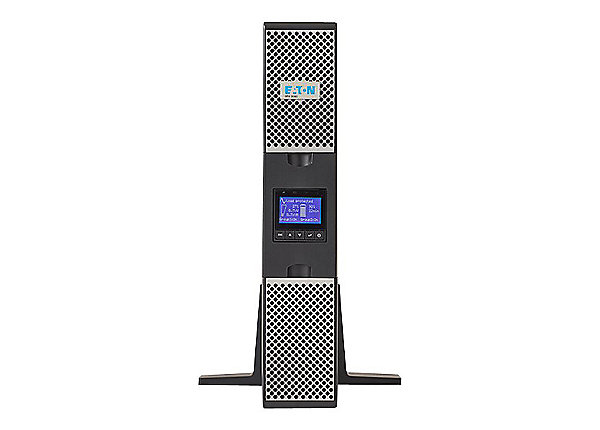

Eaton 9PX 9PX1500RTN – UPS – 1350 W – 1500 VA

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Powerware Systems
Brand : Eaton
Product Line : Eaton 9PX
Model : 9PX1500RTN
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : RS-232, USB, Ethernet
Expansion Slots
Expansion Slots : 1 (total) / 0 (free) x expansion slot
Interface Provided
Interfaces : 1 x management (Ethernet) – RJ-45, 1 x USB, 1 x management (RS-232) – RJ-45
Cable Details
Cables Included : Power cable – integrated – 2.44 m, Serial cable – external – 1.83 m, USB cable – external
Software
Type : Eaton Intelligent Power Software Suite
Power Device
Form Factor : Rack-mountable / external
UPS Technology : On-line
Voltage Provided : AC 100/110/120/125 volt
Voltage Provided Margin : ± 1%
Power Provided : 1350 watt
Power Capacity (VA) : 1500 volt ampere per kilogram
Voltage Required : AC 100/110/120/125 volt
Input Voltage Range : AC 100 – 144 / 60 – 144 V
Frequency Required : 50/60 hertz
Input Connector Type : Power NEMA 5-15
Input Connector Qty : 1
Output Connector Type : Power NEMA 5-15
Output Connector Qty : 8
Efficiency : 90%
Power Factor (PF) : 0.99
Total Harmonic Distortion (THD) : 3 percent
Power Device Features : Automatic self-test, Advance Battery Management (ABM), LCD display, Cold-start function, Remote Emergency Power Off (REPO)
Power Output Connectors Details
Power Output Connectors Details : 8 x power NEMA 5-15
Battery
Run Time (Up To) : 5 minute (time unit)
Load Type : At full load
Lead Acid Battery Features : Maintenance free, Sealed
UPS
Expandable Battery : Expandable
Battery Technology : Lead acid
Miscellaneous
Color : Silver, Black
Color Category : Silver, Black
Included Accessories : 4-post rail kit, Tower stand
Height (Rack Units) : 2
Compliant Standards : VCCI Class B, RoHS, CISPR 22, FCC Part 15 Class B, IEC 62040-2, ANSI C62.41
Environmental Standards
ENERGY STAR : Yes
Dimensions & Weight
Width : 44 centimetre
Depth : 45 centimetre
Height : 8.65 centimetre
Weight : 19.3 keg
Service & Support
Type : 2-year warranty
Service & Support Details
Service & Support : Limited warranty – 2 years
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Sound Emission : 40 decibel
