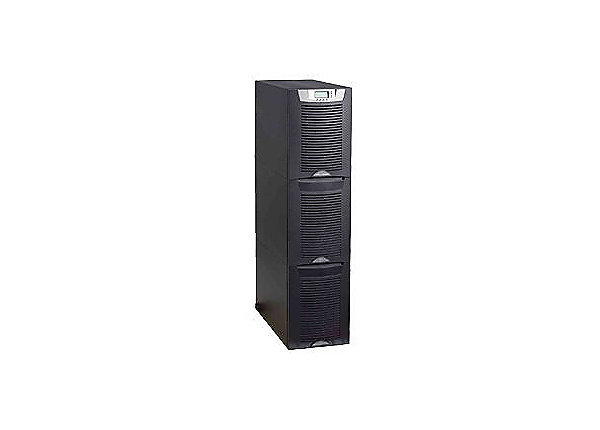

Eaton 9155 – power array – 9 kW – 10000 VA

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Eaton Power Quality
Brand : Eaton
Product Line : Eaton
Model : 9155
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : Power array
Networking
Remote Management Interface : RS-232
Expansion Slots
Expansion Slots : 2 (total) / 2 (free) x X-Slot
Interface Provided
Interfaces : 1 x management (RS-232) – 9 pin D-Sub (DB-9)
Cable Details
Cables Included : Serial cable – external
Software
Type : Powerware LANSafe
Power Device
Form Factor : External
UPS Technology : On-line
Voltage Provided : AC 100/110/120/200/220/240 volt
Frequency Provided : 50/60 hertz
Power Provided : 9 kilograms per millimetere
Power Capacity (VA) : 10000 volt ampere per kilogram
Voltage Required : AC 100/110/120/127/200/208/220/240 volt
Frequency Required : 50/60 hertz
Input Connector Type : Hardwire
Output Connector Type : Hardwire
Surge Suppression : Yes
Circuit Protection : Circuit breaker
Power Factor Correction : Active Power Factor Correction (PFC)
Power Device Features : Audible alarm, Internal bypass, Advance Battery Management (ABM), LCD display, LED indicators
Power Output Connectors Details
Power Output Connectors Details : 1 x hardwire
Battery
Run Time (Up To) : 22.6 minute (time unit)
Load Type : At full load
Run Time Details
Run Time (Up To) : 22.6 min at full load
UPS
Batteries Qty : 64
Supported Batteries Qty : 64
Battery Technology : Lead acid
Battery Capacity : 9 additional minute
Miscellaneous
Color : Black
Color Category : Black
Equipment Protection Value : 250000 US Dollars
Compliant Standards : ICES-003, VCCI, UL, ISO 9001, FCC Part 15, NOM, IEC 62040-1-1, CSA, cUL, IEC 60950, UL 1778, CSA C22.2, EMC, CISPR 22 Class A, ISO 14001
Dimensions & Weight
Width : 30.5 centimetre
Depth : 85.6 centimetre
Height : 121 centimetre
Weight : 268 keg
Dimensions & Weight (Shipping)
Shipping Weight : 290 keg
Service & Support
Type : 2-year warranty
Service & Support Details
Service & Support : Limited warranty – 2 years
Environmental Parameters
Min Operating Temperature : 10 degree Celsius
Max Operating Temperature : 40 degree Celsius
Humidity Range Operating : 0 – 95%
Sound Emission : 53 dBA
