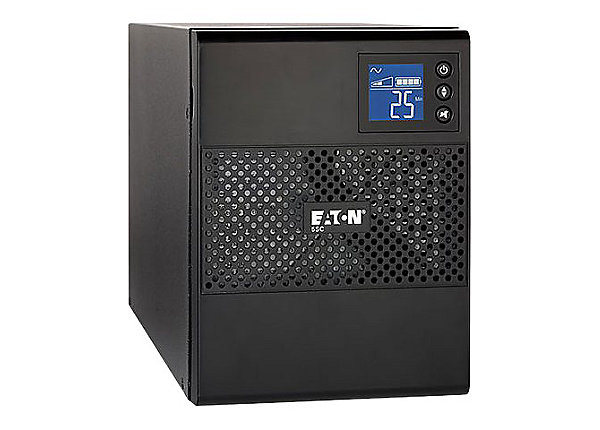

Eaton 5SC 1500G – UPS – 1050 W – 1500 VA

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Powerware Systems
Brand : Eaton
Product Line : Eaton 5SC
Model : 1500G
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : USB, RS-232
Interface Provided
Interfaces : 1 x management (USB) – 4 pin USB Type B, 1 x management (RS-232) – 9 pin D-Sub (DB-9)
Cable Details
Cables Included : USB cable – external – 1.83 m, 2 x power cable – external, Serial cable – external – 1.83 m
Software
Type : Intelligent Power Manager
Power Device
Form Factor : External
UPS Technology : Line interactive
Voltage Provided : AC 230 volt
UPS Output Waveform : Sinewave
Power Provided : 1050 watt
Power Capacity (VA) : 1500 volt ampere per kilogram
Voltage Required : AC 230 volt
Input Voltage Range : AC 184 – 276 V
Frequency Required : 50/60 hertz
Input Connector Type : Power IEC 60320 C14
Input Connector Qty : 1
Output Connector Qty : 8
Efficiency : 94%
Power Device Features : Audible alarm, Advance Battery Management (ABM), Cold-start function, LCD display
Power Output Connectors Details
Power Output Connectors Details : 8 x power IEC 60320 C13 (UPS and surge)
Battery
Run Time (Up To) : 5 minute (time unit)
Load Type : At full load
Run Time Details
Run Time (Up To) : 12 min at half load, 5 min at full load
UPS
Battery Technology : Lead acid
System Requirements
OS Required : Linux, Apple MacOS, Microsoft Windows
Miscellaneous
Color : Black
Color Category : Black
Compliant Standards : GOST, FCC Part 15 B, CISPR 22 Class B, IEC 62040-2, CCC, cTUVus, RoHS
Dimensions & Weight
Width : 15 centimetre
Depth : 41 centimetre
Height : 20.9 centimetre
Weight : 33.5 keg
Service & Support
Type : 3-year warranty
Service & Support Details
Service & Support : Limited warranty – 3 years
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 35 degree Celsius
Humidity Range Operating : 0 – 90% (non-condensing)
Sound Emission : 55 decibel
