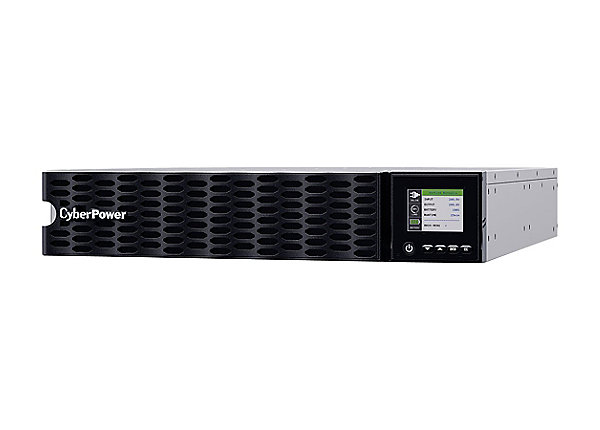

CyberPower Smart App Online OL6KRTHD – UPS – 6000 W – 6000 VA

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Cyber Power
Brand : Cyberpower
Product Line : CyberPower Smart App Online
Model : OL6KRTHD
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : RS-232, Ethernet 10/100, USB
Remote Management Protocol : Telnet, HTTPS, CLI, SNMP 3, SSH, HTTP, SNMP 1
Expansion Slots
Expansion Slots : 1 (total) / 0 (free) x expansion slot
Interface Provided
Interfaces : 1 x management (RS-232) – 9 pin D-Sub (DB-9), 1 x management – RJ-45, 1 x management (Ethernet) – RJ-45, 1 x management (USB) – 4 pin USB Type B, 1 x EPO (emergency power off)
Cable Details
Cables Included : USB cable – external, Power cable – external – 3 m, Serial cable – external
Software
Type : PowerPanel Business Edition
Power Device
Form Factor : Rack-mountable / external
UPS Technology : On-line
Voltage Provided : AC 200/208/220/230/240 volt
Voltage Provided Margin : ± 2%
Frequency Provided : 50/60 hertz
Frequency Provided Margin : ± 0.25Hz
UPS Output Waveform : Sinewave
Power Provided : 6000 watt
Power Capacity (VA) : 6000 volt ampere per kilogram
Voltage Required : AC 200-240 volt
Input Voltage Range : AC 120 – 280 V
Frequency Required : 40 – 70 hertz
Input Connector Type : Hardwire
Input Connector Qty : 1
Output Connector Qty : 4
Surge Energy Rating : 2430 joules
Circuit Protection : Circuit breaker, Fuse
Efficiency : 96% Eco mode
Power Factor (PF) : 0.99
Power Device Features : Smart Battery Management (SMB), Hot-swappable batteries, Audible alarm, Internal bypass, LCD display, Emergency power off, Double conversion, Fast Charge technology, GreenPower UPS Technology, Cold-start function, Eco-Mode, Short-circuit protection, Battery Equalization Technology, Overload protection
Power Output Connectors Details
Power Output Connectors Details : 2 x power NEMA L6-20R, 2 x power NEMA L6-30R
Battery
Voltage Provided : 12 volt
Run Time (Up To) : 1.4 minute (time unit)
Load Type : At full load
Recharge Time : 4 Hours
Lead Acid Battery Features : Sealed
Run Time Details
Run Time (Up To) : 4.9 min at half load, 1.4 min at full load
UPS
Batteries Qty : 12
Battery Technology : Lead acid
Battery Capacity : 6 additional minute
Miscellaneous
Color : Black
Color Category : Black
Rack Mounting Kit : Included
Height (Rack Units) : 2
Equipment Protection Value : 300000 US Dollars
Compliant Standards : FCC Part 15 A, CSA C22.2 No.107.3-05, IEC 61000-4-5, RoHS, UL 1778 5th edition
Dimensions & Weight
Width : 43.2 centimetre
Depth : 71.9 centimetre
Height : 8.6 centimetre
Weight : 41.91 keg
Dimensions & Weight (Shipping)
Shipping Width : 59.944 centimetre
Shipping Depth : 109.982 centimetre
Shipping Height : 21.59 centimetre
Shipping Weight : 51.98 keg
Service & Support
Type : 3-year warranty
Service & Support Details
Service & Support : Limited warranty – 3 years
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Humidity Range Operating : 0 – 90% (non-condensing)
