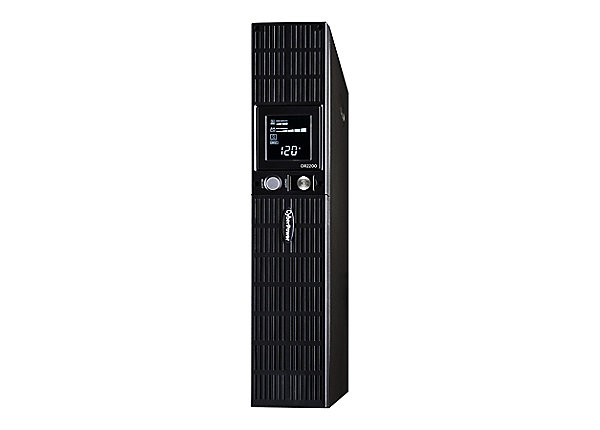

CyberPower Smart App Intelligent LCD OR2200LCDRT2U – UPS – 1320 W – 2000

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Cyber Power
Brand : Cyberpower
Product Line : CyberPower Smart App Intelligent LCD
Model : OR2200LCDRT2U
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : RS-232, USB
Interface Provided
Interfaces : 1 x management (USB) – 4 pin USB Type B, 2 x management (RS-232) – 9 pin D-Sub (DB-9)
Cable Details
Cables Included : Phone cable, Power cable 3.05 m, Serial cable, USB cable
Software
Type : PowerPanel Business Edition
Power Device
Form Factor : Rack-mountable / external
UPS Technology : Line interactive
Voltage Provided : AC 120 volt
Voltage Provided Margin : ± 10%
Frequency Provided : 60 hertz
UPS Output Waveform : Sinewave
Power Provided : 1320 watt
Power Capacity (VA) : 2000 volt ampere per kilogram
Voltage Required : AC 90-140 volt
Frequency Required : 47 – 63 hertz
Input Connector Type : Power NEMA 5-20
Input Connector Qty : 1
Output Connector Qty : 8
Surge Suppression : Yes
Switchover Time : 10 millisecond
Surge Energy Rating : 1840 joules
Circuit Protection : Circuit breaker
Power Device Features : Overload protection, LCD display, GreenPower UPS Technology, Current meter, Automatic Voltage Regulation (AVR), Audible alarm
Power Output Connectors Details
Power Output Connectors Details : 8 x power NEMA 5-20 (UPS and surge)
Dataline Surge Protection
Dataline Surge Protection : Coaxial – 1 input line / 1 output line, Network/phone line – RJ-45/RJ-11 – 1 input line / 1 output line
Battery
Voltage Provided : 12 volt
Run Time (Up To) : 5 minute (time unit)
Load Type : At full load
Recharge Time : 8 Hours
Lead Acid Battery Features : Sealed
Run Time Details
Run Time (Up To) : 5 min at full load, 13 min at half load
UPS
Batteries Qty : 4
Battery Technology : Lead acid
Battery Capacity : 9 additional minute
System Requirements
OS Required : Microsoft Windows Server 2008, Microsoft Windows 2000, Microsoft Windows Server 2012, Microsoft Windows Vista / XP / 7 / 8 (64-bit versions), Microsoft Windows 2003
Miscellaneous
Color Category : Black
Height (Rack Units) : 2
Equipment Protection Value : 300000 US Dollars
Compliant Standards : CSA C22.2 No. 107.1, RoHS, UL 1778, DOC-B, FCC, cUL
Environmental Standards
ENERGY STAR : Yes
Dimensions & Weight
Width : 43.8 centimetre
Depth : 40 centimetre
Height : 8.89 centimetre
Weight : 23.9 keg
Service & Support
Type : 3-year warranty
Service & Support Details
Service & Support : Limited warranty – 3 years
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Humidity Range Operating : 0 – 95% (non-condensing)
