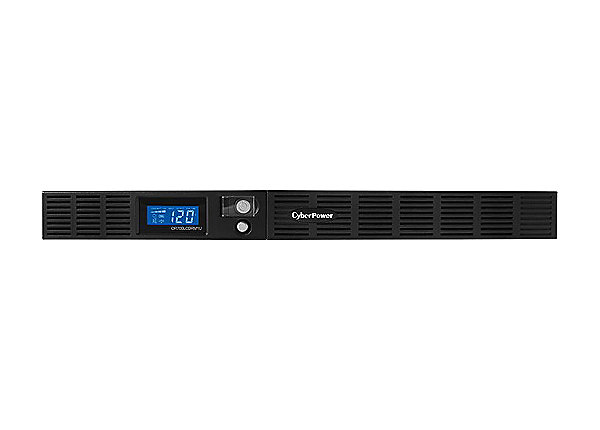

CyberPower Office Rackmount LCD Series OR700LCDRM1U

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Cyber Power
Brand : Cyberpower
Product Line : CyberPower Office Rackmount LCD Series
Model : OR700LCDRM1U
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : USB, RS-232
Interface Provided
Interfaces : 1 x management (USB) – 4 pin USB Type A, 1 x management (RS-232) – 9 pin D-Sub (DB-9)
Cable Details
Cables Included : Power cable – integrated – 3 m, USB cable – external, Serial cable – external
Software
Type : PowerPanel Business Edition
Power Device
Form Factor : External
UPS Technology : Line interactive
Voltage Provided : AC 120 volt
Voltage Provided Margin : ± 10%
Frequency Provided : 60 hertz
UPS Output Waveform : Stepped approximation to a sinewave
Power Provided : 400 watt
Power Capacity (VA) : 700 volt ampere per kilogram
Input Voltage Range : AC 90 – 140 V
Frequency Required : 60 hertz
Input Connector Type : Power NEMA 5-15
Input Connector Qty : 1
Output Connector Type : Power NEMA 5-15
Output Connector Qty : 6
Surge Energy Rating : 1030 joules
Circuit Protection : Circuit breaker
Power Device Features : Audible alarm, Automatic Voltage Regulation (AVR), LCD display
Power Output Connectors Details
Power Output Connectors Details : 4 x power NEMA 5-15 (UPS and surge), 2 x power NEMA 5-15 (surge)
Dataline Surge Protection
Dataline Surge Protection : Network/phone line – RJ-45/RJ-11
Battery
Voltage Provided : 6 volt
Run Time (Up To) : 3 minute (time unit)
Load Type : At full load
Recharge Time : 8 Hours
Supported Battery
Technology : Lead acid
Run Time Details
Run Time (Up To) : 3 min at full load
UPS
Batteries Qty : 2
Battery Technology : Lead acid
Battery Capacity : 8 additional minute
Miscellaneous
Height (Rack Units) : 1
Equipment Protection Value : 30000 US Dollars
Compliant Standards : UL 1778, FCC Class B certified, cUL
Dimensions & Weight
Width : 43.2 centimetre
Depth : 23.5 centimetre
Height : 4.4 centimetre
Weight : 8.4 keg
Service & Support
Type : 3-year warranty
Service & Support Details
Service & Support : Limited warranty – 3 years
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 35 degree Celsius
Humidity Range Operating : 0 – 95%
