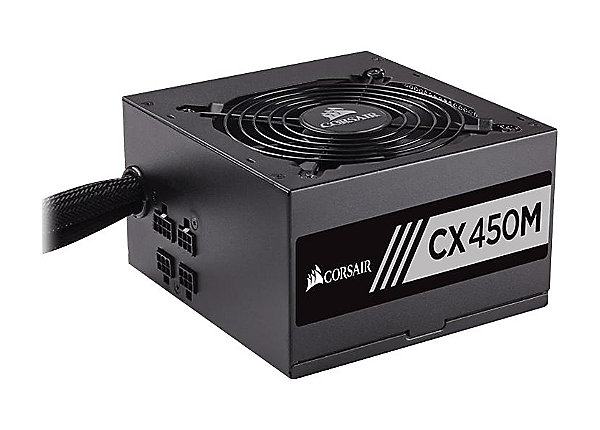

CORSAIR CX-M Series CX450M – 2015 Edition – power supply – 450 W

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Corsair
Brand : CORSAIR
Product Line : CORSAIR CX-M Series
Model : CX450M
Edition : 2015 Edition
Country Kits : North America
Packaged Quantity : 1
General
Subcategory : Power supplies
Product Type : Power supply
Power Device
Form Factor : Internal
Specification Compliance : ATX12V 2.4/ EPS12V 2.92
PSU Form Factor : ATX
Power Supply Compatibility : PC/Server
Voltage Provided : +3.3, +5, ±12 volt
Power Provided : 450 watt
Voltage Required : AC 100-240 volt
Frequency Required : 47 – 63 hertz
Modular Cable Management : Yes
Power Factor Correction : Active Power Factor Correction (PFC)
Efficiency : 85%
Power Factor (PF) : 0.99
80 PLUS Certification : 80 PLUS Bronze
Cooling System : 120 mm fan
Power Device Features : Undervoltage protection, Temperature controlled fan, Semi-modular, Short-circuit protection, Overpower protection, Single 12V rail, Overvoltage protection
Output Current
Output Current : -12V – 0.8 A, +5V – 20 A, +3.3V – 20 A, +5VSB – 3 A, +12V – 37.4 A
Power Output Connectors Details
Power Output Connectors Details : 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section, 3 x 4 pin internal power, 1 x 8 pin PCI Express power with detachable 2 pin section, 4 x 15 pin Serial ATA power, 1 x 4 pin mini-power connector, 1 x power 24 pin ATX with detachable 4 pin section
Miscellaneous
Color : Matte black
Color Category : Black
MTBF : 100,000 Hours
Compliant Standards : CU-TR, CB, TUV, KC, CCC, cTUVus, FCC, BSMI, RCM, Energy-Related Products (ErP) Lot 6, WEEE, ICES, China RoHS, RoHS
Features : Sleeved cables
Dimensions & Weight
Width : 15 centimetre
Depth : 14 centimetre
Height : 8.6 centimetre
Weight : 3.27 keg
Dimensions & Weight (Shipping)
Shipping Width : 21.6 centimetre
Shipping Depth : 29 centimetre
Shipping Height : 13 centimetre
Shipping Weight : 3.53 keg
Service & Support
Type : 5-year warranty
Service & Support Details
Service & Support : Limited warranty – 5 years
