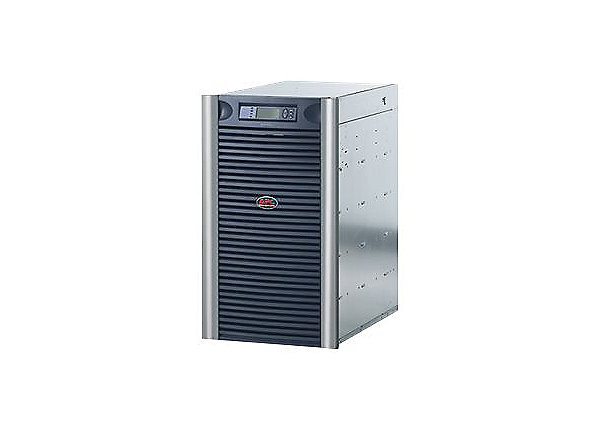

APC Symmetra LX 12kVA Scalable to 16kVA N+1

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : APC
Brand : APC
Product Line : APC Symmetra LX
Model : 12kVA Scalable to 16kVA N+1
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : Power array
Networking
Remote Management Interface : Ethernet 10/100
Remote Management Protocol : HTTP, SNMP
Expansion Slots
Expansion Slots : 3 (total) / 2 (free) x SmartSlot
Interface Provided
Interfaces : 1 x management (Ethernet) – RJ-45, 1 x management (RS-232) – 9 pin D-Sub (DB-9)
Software
Type : APC PowerChute Symmetra Bundle
Power Device
Form Factor : Rack-mountable
Voltage Provided : AC 120/208/240 volt
Voltage Provided Margin : ± 5%
Frequency Provided : 47 – 63 hertz
UPS Output Waveform : Sinewave
Power Capacity (VA) : 12000 volt ampere per kilogram
Voltage Required : AC 208/240 volt
Input Voltage Range : AC 155 – 276 V
Frequency Required : 45 – 65 hertz
Input Connector Type : Hardwire
Input Connector Qty : 1
Output Connector Type : Hardwire, Power NEMA L5-20, Power NEMA L14-30
Output Connector Qty : 13
Power Output Connectors Details
Power Output Connectors Details : 4 x power NEMA L14-30, 8 x power NEMA L5-20, 1 x hardwire
Battery
Run Time (Up To) : 6 minute (time unit)
Load Type : At full load
Recharge Time : 3 Hours
Supported Battery
Technology : Lead acid
Run Time Details
Run Time (Up To) : 6 min at full load
UPS
Battery Technology : Lead acid
Miscellaneous
Color : Black, Silver
Color Category : Black, Silver
Height (Rack Units) : 19
Rack Size : 19″
Rack Size (metric) : 48.3 cm
Compliant Standards : CSA, UL 1778, FCC Class A certified
Features : Emergency power off, LCD display, Audible alarm
Dimensions & Weight
Width : 47 centimetre
Depth : 69 centimetre
Height : 84 centimetre
Weight : 243 keg
Service & Support
Type : 2-year warranty
Service & Support Details
Service & Support : Limited warranty – 2 years
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Humidity Range Operating : 0 – 95%
