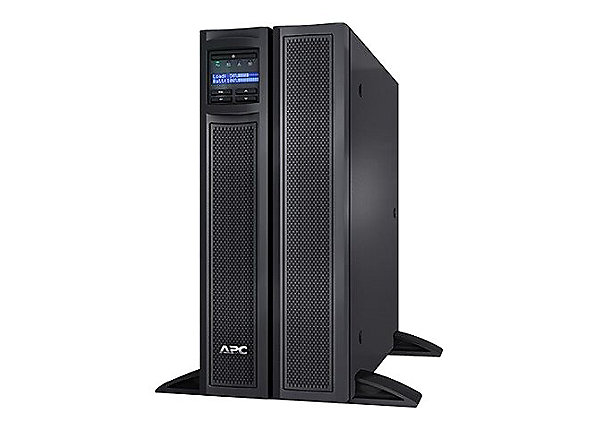

APC Smart-UPS X 3000 Rack/Tower LCD – UPS – 2700 W – 3000 VA

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : APC
Brand : APC
Product Line : APC Smart-UPS X
Model : 3000 Rack/Tower LCD
Country Kits : United States, Canada
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : USB, RS-232
Expansion Slots
Expansion Slots : 1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces : 1 x management (USB) – 4 pin USB Type B, 1 x management (RS-232) – 9 pin D-Sub (DB-9), 1 x EPO (emergency power off)
Cable Details
Cables Included : Serial cable – external, Power cable 2.44 m, USB cable – external
Software
Type : Drivers & Utilities
Power Device
Form Factor : Rack-mountable / external
UPS Technology : Line interactive
Voltage Provided : AC 120 volt
Voltage Provided Margin : ± 5%
Frequency Provided : 47 – 53 / 57 – 63 hertz
UPS Output Waveform : Sinewave
Power Provided : 2700 watt
Power Capacity (VA) : 3000 volt ampere per kilogram
Voltage Required : AC 120 volt
Input Voltage Range : AC 70 – 153 V
Frequency Required : 50/60 hertz
Input Connector Type : Power NEMA L5-30
Input Connector Qty : 1
Output Connector Qty : 10
Surge Suppression : Yes
Switchover Time : 2 millisecond
Surge Energy Rating : 540 joules
Power Device Features : Automatic Voltage Regulation (AVR), Hot-swappable batteries, LED indicators, LCD display, Audible alarm
Power Output Connectors Details
Power Output Connectors Details : 1 x power NEMA L5-30, 6 x power NEMA 5-15, 3 x power NEMA 5-20
Battery
Run Time (Up To) : 6 minute (time unit)
Load Type : At full load
Recharge Time : 3 Hours
Run Time Details
Run Time (Up To) : 6 min at full load, 18 min at half load
UPS
Batteries Qty : 1
Battery Technology : Lead acid
Miscellaneous
Color : Black
Color Category : Black
Included Accessories : Tower stand
Rack Mounting Kit : Included
Height (Rack Units) : 4
Compliant Standards : RoHS, EN 50091-2, VCCI Class A, BSMI, EN55022 Class A, NOM, TUV, UL 1449, CSA, UL 1778, FCC Part 15 A, REACH
Dimensions & Weight
Width : 48.3 centimetre
Depth : 43.2 centimetre
Height : 17.8 centimetre
Weight : 38.64 keg
Dimensions & Weight (Shipping)
Shipping Width : 58.6 centimetre
Shipping Depth : 63.3 centimetre
Shipping Height : 33 centimetre
Shipping Weight : 47.73 keg
Service & Support
Type : 3-year warranty
Service & Support Details
Service & Support : Limited warranty – batteries – 2 years, Limited warranty – 3 years
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Humidity Range Operating : 0 – 95%
Sound Emission : 55 dBA
