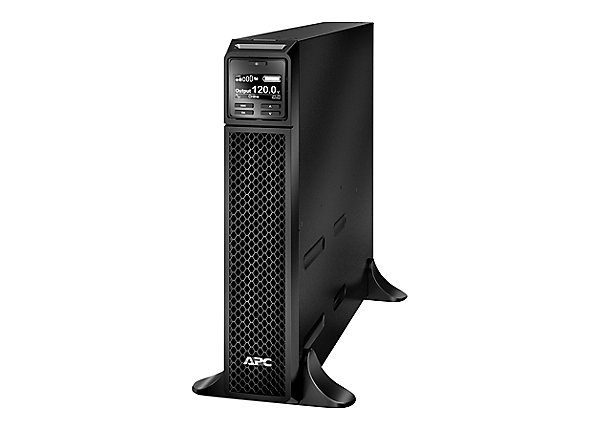

APC Smart-UPS SRT 2200VA – UPS – 1800 W – 2200 VA

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : American Power Conver Cables
Brand : APC
Product Line : APC Smart-UPS SRT
Model : 2200VA
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : USB, RS-232
Expansion Slots
Expansion Slots : 1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces : 1 x management (RS-232) – RJ-45, 1 x management (USB), 1 x EPO (emergency power off)
Cable Details
Cables Included : USB cable – external, Power cable 1.83 m
Software
Type : APC PowerChute
Power Device
Form Factor : External
UPS Technology : On-line
Voltage Provided : AC 120 volt
Voltage Provided Margin : ± 2%
Frequency Provided : 50/60 hertz
Frequency Provided Margin : ± 3Hz
UPS Output Waveform : Sinewave
Power Provided : 1800 watt
Power Capacity (VA) : 2200 volt ampere per kilogram
Voltage Required : AC 120 volt
Frequency Required : 40 – 70 hertz
Input Connector Type : Power NEMA 5-20P
Input Connector Qty : 1
Output Connector Qty : 7
Surge Suppression : Yes
Surge Energy Rating : 340 joules
Circuit Protection : Circuit breaker
Efficiency : 87.7% at 25% Load, 91.1% at 50% Load, 91.7% at 75% Load, 91.7% at 100% Load
Power Device Features : Reset breaker, Lightning protection, Automatic self-test, Auto restart, LED indicators, Hot-swappable batteries, Internal bypass, Energy meter, Audible alarm, LCD display, Generator compatible, Cold-start function
Power Output Connectors Details
Power Output Connectors Details : 6 x power NEMA 5-20R (UPS and surge), 1 x power NEMA L5-20R (UPS and surge)
Battery
Voltage Provided : 72 volt
Run Time (Up To) : 3.3 minute (time unit)
Load Type : At full load
Recharge Time : 3 Hours
Lead Acid Battery Features : Leak-proof, Maintenance free, Sealed
Run Time Details
Run Time (Up To) : 8.9 min at 1000 Watts, 10.3 min at half load, 59.5 min at 200 Watts, 3.3 min at full load, 6 min at 1300 Watts, 21.8 min at 500 Watts, 10.3 min at 900 Watts, 14.4 min at 700 Watts, 4.1 min at 1600 Watts
UPS
Batteries Qty : 1
Battery Technology : Lead acid
Miscellaneous
Color : Black
Color Category : Black
Included Accessories : Tower stand
Compliant Standards : FCC Part 15 A, RoHS, REACH, UL 1778, CSA C22.2 No.107.3-05, IP20
Environmental Standards
ENERGY STAR : Yes
Dimensions & Weight
Width : 8.5 centimetre
Depth : 58.4 centimetre
Height : 43.2 centimetre
Weight : 25 keg
Dimensions & Weight (Shipping)
Shipping Width : 59.9 centimetre
Shipping Depth : 81 centimetre
Shipping Height : 24.6 centimetre
Shipping Weight : 30.84 keg
Service & Support
Type : 3-year warranty
Service & Support Details
Service & Support : Limited warranty – batteries – 2 years, Limited warranty – 3 years
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Humidity Range Operating : 0 – 95% (non-condensing)
