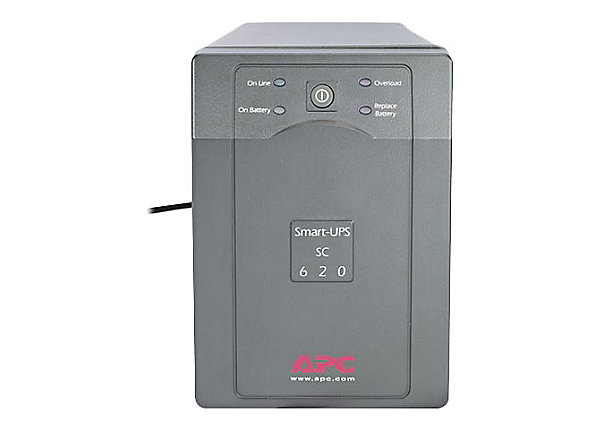

APC Smart-UPS SC 620VA

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : APC
Brand : APC
Product Line : APC Smart-UPS
Model : SC 620VA
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Interface Provided
Interfaces : 1 x RS-232 – 9 pin D-Sub (DB-9)
Cable Details
Cables Included : Serial cable, Power cable – integrated – 1.8 m
Software
Type : Drivers & Utilities
Power Device
Form Factor : External
UPS Technology : Line interactive
Voltage Provided : AC 120 volt
Power Provided : 390 watt
Power Capacity (VA) : 620 volt ampere per kilogram
Voltage Required : AC 120 volt
Input Voltage Range : AC 82 – 144 V
Input Voltage Range (Adjustable) : AC 75 – 154 V
Frequency Required : 50/60 hertz
Input Connector Type : Power NEMA 5-15
Input Connector Qty : 1
Output Connector Type : Power NEMA 5-15
Output Connector Qty : 4
Surge Suppression : Yes
Surge Energy Rating : 412 joules
Power Output Connectors Details
Power Output Connectors Details : 4 x power NEMA 5-15
Dataline Surge Protection
Dataline Surge Protection : Ethernet 10/100Base-TX – RJ-45
Battery
Run Time (Up To) : 5.5 minute (time unit)
Load Type : At full load
Run Time Details
Run Time (Up To) : 5.5 min at full load
UPS
Battery Technology : Lead acid
Miscellaneous
Color : Gray
Color Category : Gray
Compliant Standards : NOM, FCC Class B certified, CSA, UL 1449, FCC Part 15, UL 1778
Features : Audible alarm
Dimensions & Weight
Width : 11.9 centimetre
Depth : 36.8 centimetre
Height : 16.8 centimetre
Weight : 12.3 keg
Service & Support
Type : 2-year warranty
Service & Support Details
Service & Support : Limited warranty – parts and labor – 2 years
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Humidity Range Operating : 0 – 95%
