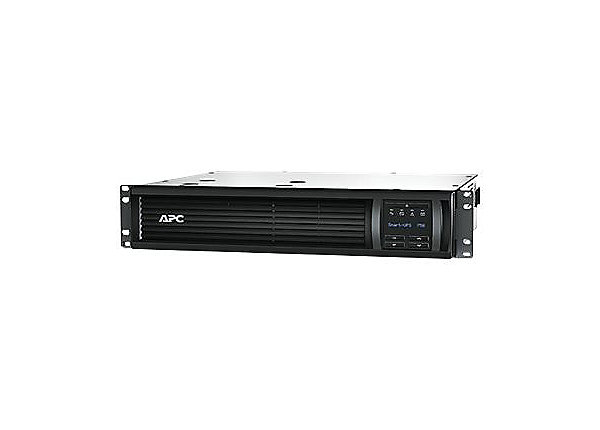

APC Smart-UPS 750 LCD – UPS – 500 Watt – 750 VA

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : APC
Brand : APC
Product Line : APC Smart-UPS
Model : 750 LCD
Packaged Quantity : 1
General
Subcategory : UPS
Product Type : UPS
Networking
Remote Management Interface : USB, RS-232
Expansion Slots
Expansion Slots : 1 SmartSlot
Interface Provided
Interfaces : 1 x management (USB) – 4 pin USB Type B, 1 x management (RS-232) – RJ-45
Cable Details
Cables Included : Serial cable – external, USB cable – external
Software
Type : Drivers & Utilities
Power Device
Form Factor : Rack-mountable
UPS Technology : Line interactive
Voltage Provided : AC 220/230/240 volt
Voltage Provided Margin : ± 5%
Frequency Provided : 57 – 63 hertz
UPS Output Waveform : Sinewave
Power Provided : 500 watt
Power Capacity (VA) : 750 volt ampere per kilogram
Voltage Required : AC 230 volt
Input Voltage Range : AC 160 – 286 V
Input Voltage Range (Adjustable) : AC 151 – 302 V
Frequency Required : 50/60 hertz
Input Connector Type : Power IEC 60320 C14
Output Connector Qty : 4
Surge Suppression : Yes
Surge Energy Rating : 459 joules
Power Device Features : LCD display, Cold-start function, Audible alarm
Power Output Connectors Details
Power Output Connectors Details : 4 x power IEC 60320 C13
Battery
Run Time (Up To) : 5.5 minute (time unit)
Load Type : At full load
Recharge Time : 3 Hours
Run Time Details
Run Time (Up To) : 5.5 min at full load, 16 min at half load
UPS
Batteries Qty : 1
Battery Technology : Lead acid
Miscellaneous
Color : Black
Color Category : Black
Rack Mounting Kit : Included
Height (Rack Units) : 2
Compliant Standards : RoHS Exemption 7b, EN 50091-2, VDE, C-Tick, TUV, EN 50091-1, REACH
Dimensions & Weight
Width : 43.2 centimetre
Depth : 40.6 centimetre
Height : 8.9 centimetre
Weight : 17.3 keg
Dimensions & Weight (Shipping)
Shipping Width : 54.6 centimetre
Shipping Depth : 58.4 centimetre
Shipping Height : 24.1 centimetre
Shipping Weight : 21.2 keg
Service & Support
Type : 3-year warranty
Service & Support Details
Service & Support : Limited warranty – batteries – 2 years, Limited warranty – 3 years
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Humidity Range Operating : 0 – 95%
Sound Emission : 42 dBA
