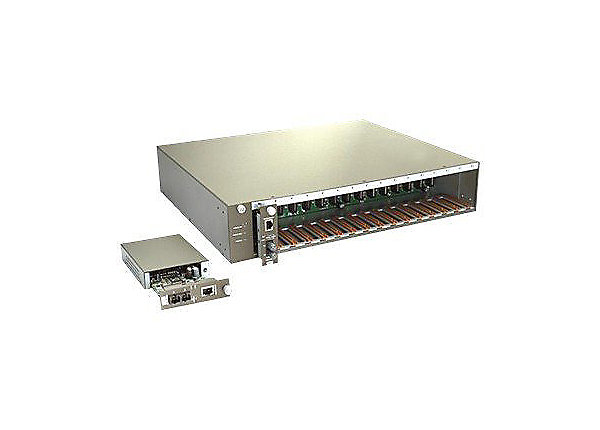

Amer MR16 – modular expansion base

Tech Specs
Specifications are provided by the manufacturer.
Header
Manufacturer : Amer Networks
Brand : Amer
Product Line : Amer
Model : MR16
Packaged Quantity : 1
Networking
Type : Modular expansion base
Form Factor : External
Connectivity Technology : Wired
Remote Management Protocol : TFTP, SNMP, Telnet
Status Indicators : Fan, Active, Power
Features : Short circuit protection
Expansion Slots
Expansion Slots : 16 (total) / 16 (free) x expansion slot
Interface Provided
Interfaces : 1 x management, 1 x 100Base-TX (management)
Power Device
Type : Internal power supply
Hot-Plug : Hot-plug
Installed Qty : 1
Max Supported Qty : 2
Nominal Voltage : AC 120/230 V
Frequency Required : 47 – 63 hertz
Miscellaneous
Compliant Standards : VCCI Class A ITE, cUL, CB, FCC Class A certified, TUV
Dimensions & Weight
Width : 44 centimetre
Depth : 35 centimetre
Height : 8.8 centimetre
Service & Support
Type : Limited lifetime warranty
Service & Support Details
Service & Support : Limited warranty – lifetime
Environmental Parameters
Min Operating Temperature : 0 degree Celsius
Max Operating Temperature : 40 degree Celsius
Humidity Range Operating : 5 – 90%
